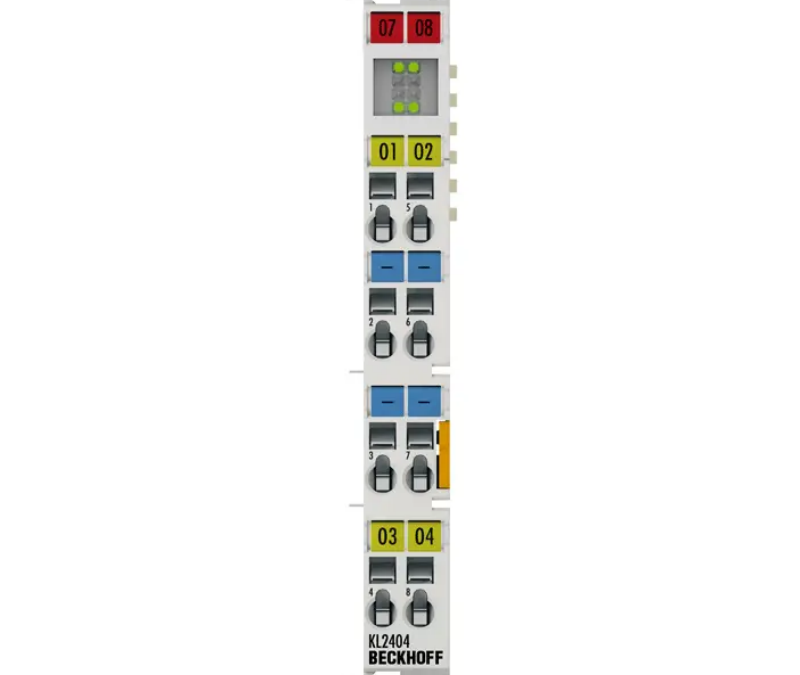

KL2404 BECKHOFF Digital Output
Model: KL2404 BECKHOFF Digital Output
Technical data KL2404 Conn…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Technical data | KL2404 |
|---|---|
| Connection technology | 2-wire |
| Number of outputs | 4 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Short-circuit current | < 2 A |
| Breaking energy | < 150 mJ/channel |
| Reverse voltage protection | yes |
| Electrical isolation | 500 V (K-bus/field potential) |
| Current consumption power contacts | typ. 30 mA + load |
| Current consumption K-bus | typ. 9 mA |
| Bit width in the process image | 4 outputs |
| Configuration | no address or configuration setting |
| Weight | approx. 70 g |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
