Beckhoff

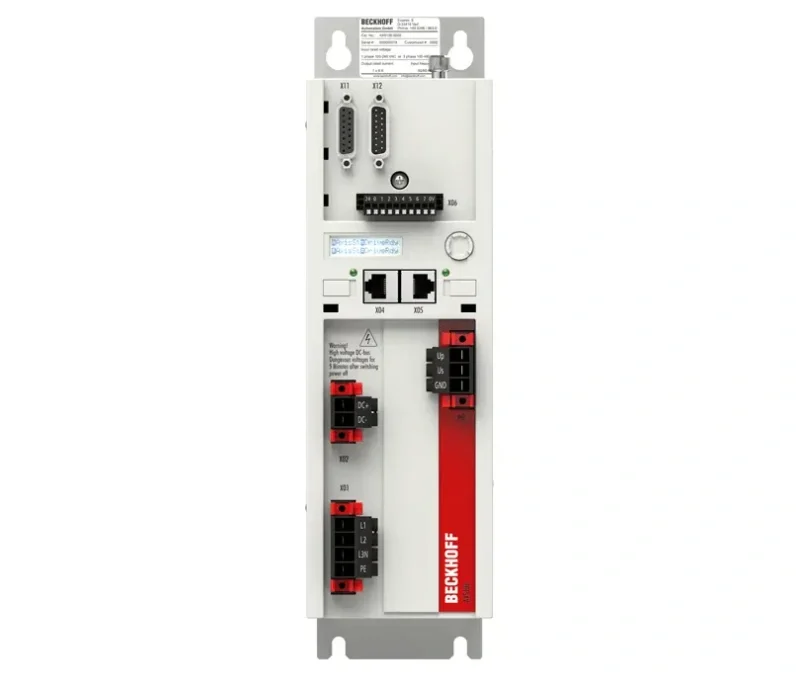

AX5112-0000 Beckhoff Digital Compact Servo Drives 1-channel
Model: AX5112-0000 Beckhoff Digital Compact Servo Drives 1-channel
Product Information Descri…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product Information
Description:
-
AX51120000
-
SERVO DRIVE
-
DIGITAL COMPACT
-
1-AXIS MODULE
-
100-480 VAC
-
12 AMP
-
90-160 WATT
-
ETHERCAT INTERFACE
-
Technical data AX5112 Function servo drive Channels 1 Rated supply voltage 3 x 100…480 V AC ±10% DC link voltage max. 875 V DC Rated output current (channel) 12 A Peak output current (channel) 26 A Feedback SinCos 1 Vpp , resolver , EnDat 2.1 , Hiperface , BiSS B , OCT System bus EtherCAT Drive profile SERCOS™ profile for servo drives according to IEC 61800-7-204 (SoE) Ambient temperature (operation) 0…+50°C (see documentation) Approvals/markings CE, cULus, EAC - Part # AX5112-0000
- Category Servo Products
- Subcategory Servo Drive/Servo Control
- Weight 11.89 lbs
