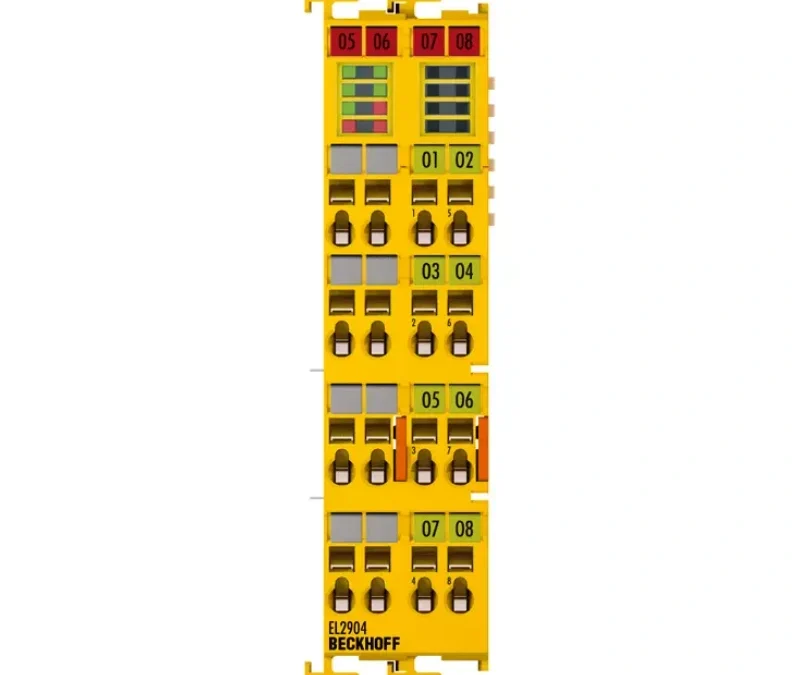

EL2904 BECKHOFF EtherCAT Terminal
Model: EL2904 BECKHOFF EtherCAT Terminal
Technical data EL2904 Conn…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Technical data | EL2904 |
|---|---|
| Connection technology | 1-/2-wire |
| Specification | output of output signals |
| Number of outputs | 4 |
| Max. output current | 0.5 A (per channel), min. 20 mA (with active current measurement) |
| Protocol | TwinSAFE/Safety over EtherCAT |
| Fault response time | ≤ watchdog time (parameterizable) |
| Current consumption power contacts | load-dependent |
| Current consumption E-bus | typ. 221 mA |
| Installation position | horizontal |
| Safety standard | DIN EN ISO 13849-1:2008 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) |
| Weight | approx. 100 g |
| Protection rating | IP20 |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
To top
| Housing data | EL-24-2x8pin |
|---|---|
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 24 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
