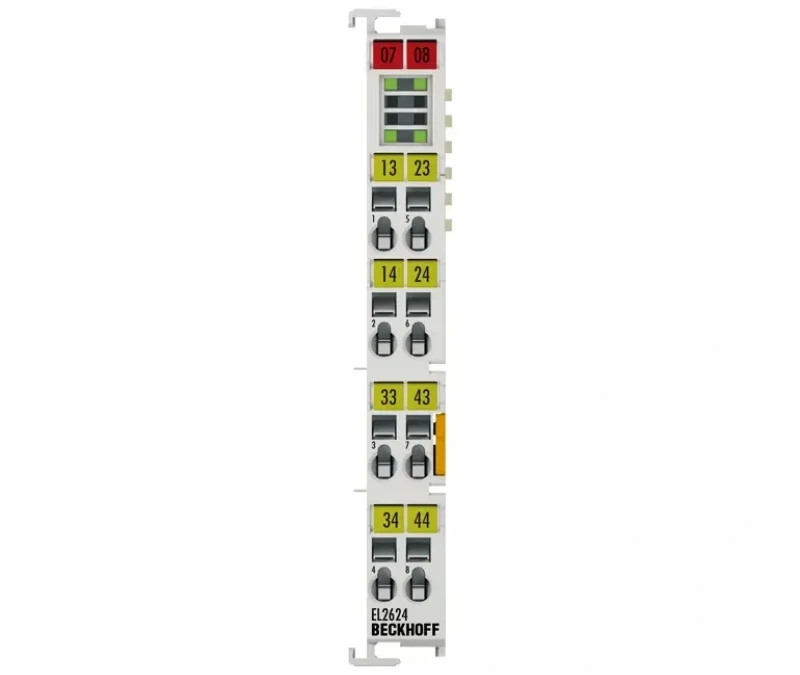

EL2624 BECKHOFF PLC Programming Terminal
Model: EL2624 BECKHOFF PLC Programming Terminal
Technical data EL2624 Conn…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Technical data | EL2624 |
|---|---|
| Connection technology | relay output |
| Number of outputs | 4 x make contacts |
| Nominal voltage | 125 V AC/30 V DC |
| Load type | ohmic |
| Distributed clocks | – |
| Ohmic switching current | 0.5 A AC/2 A DC per channel |
| Minimum permitted load | 10 µA at 10 mV DC with intact contact coating |
| Inductive switching current | no data |
| Current consumption E-bus | typ. 200 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption power contacts | – |
| Bit width in the process image | 4 outputs |
| Operating cycles mech. (min.) | 1 x 108 |
| Operating cycles electr. (min.) | 2 x 105 (1 A/30 V DC) |
| Configuration | no address or configuration setting |
| Weight | approx. 50 g |
| Operating/storage temperature | 0…+55°C/-25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL |
To top
| Housing data | EL-12-8pin | ES-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | labeling of the BZxxx series | |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
s*: AWG28…16, st*: AWG28…16, f*: AWG26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
