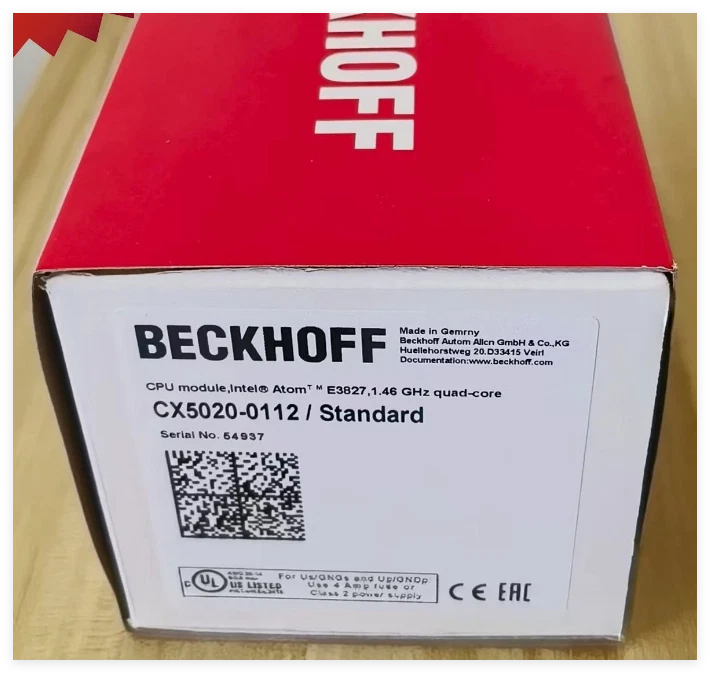

CX5020-0112 | BECKHOFF | Embedded PC with Intel Atom® processor
Model: CX5020-0112 | BECKHOFF | Embedded PC with Intel Atom® processor
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | CX5020-0112 |
| Brand | Beckhoff |
| Product Type | Embedded PC (E-bus) |
| Processor | Intel Atom® Z530; 1.6 GHz clock frequency; 1 core |
| Memory | Main: 512 MB RAM (expandable to 1 GB ex factory); Flash: 128 MB Compact Flash (slot, expandable); Persistent: 1 MB (1-second UPS on CF) |
| Interfaces | 2×RJ45 10/100/1000 Mbit/s; 1×DVI-D; 4×USB 2.0; 1×optional interface |
| Operating System | Windows Embedded CE 6; Windows Embedded Standard 2009 |
| Control Software | TwinCAT 2 PLC/NCPTP runtime; TwinCAT 3 runtime (XAR) |
| I/O Connection | E-bus/K-bus (automatic recognition) |
| Power Supply | 24 V DC (-15%/+20%); E-bus/K-bus current supply: 2 A |
| Max Power Consumption | 13 W |
| Dimensions (W×H×D) | 106 mm × 100 mm × 92 mm |
| Weight | 0.575 kg (net); 2 kg (shipping) |
| Protection Rating | IP20 |
| Operating/Storage Temperature | Operating: -25…+60 °C; Storage: -40…+85 °C |
| Relative Humidity | 95% (non-condensing) |
| EMC Compliance | EN 61000-6-2 (immunity); EN 61000-6-4 (emission) |
| Vibration/Shock Resistance | EN 60068-2-6; EN 60068-2-27 |
| Approvals | CE; UL; ATEX (with CX1900-0105 option: II 3 G Ex nA IIC T4 Gc) |
| Key Features | Internal battery-backed clock; automatic bus recognition |
