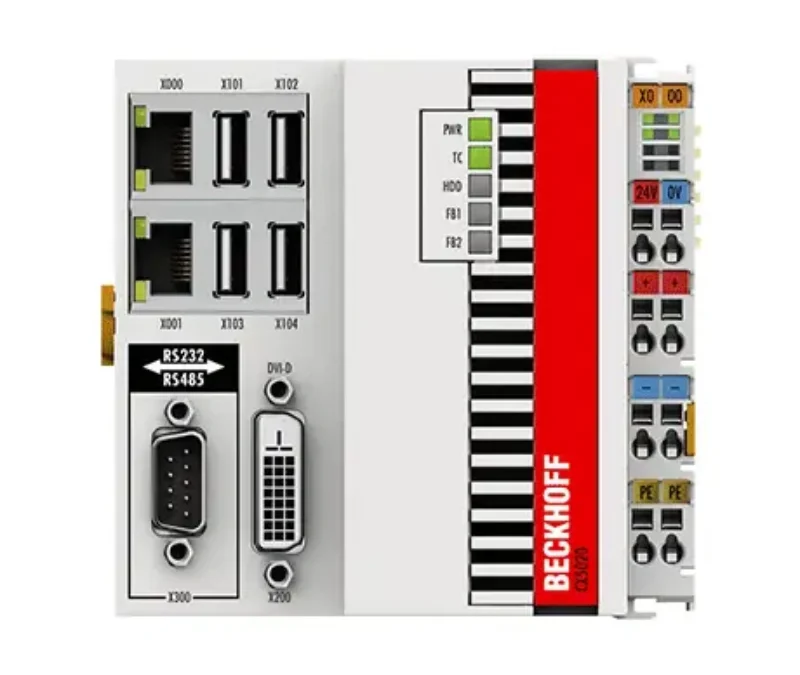

CX5010-0111 Beckhoff Bus End Module
Model: CX5010-0111 Beckhoff Bus End Module
Technical data CX5010 Proc…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Technical data | CX5010 |
|---|---|
| Processor | Intel Atom® Z510, 1.1 GHz clock frequency |
| Number of cores | 1 |
| Flash memory | slot for Compact Flash card, 128 MB included (expandable) |
| Main memory | 512 MB RAM (not expandable) |
| 1-second UPS | integrated (1 MB on Compact Flash card) |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface |
| Cooling | passive |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Windows Embedded CE 6, Windows Embedded Standard 2009 |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (-15%/+20%) |
| Current supply E-bus/K-bus | 2 A |
| Max. power consumption | 12 W |
| Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
| Weight | approx. 575 g |
| Dimensions (W x H x D) | 106 mm x 100 mm x 92 mm |
| Relative humidity | 95%, no condensation |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL, with CX1900-0105 ordering option: ATEX |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| TwinCAT 3 platform level | Performance (40); please see here for an overview of all the TwinCAT 3 platform level |
