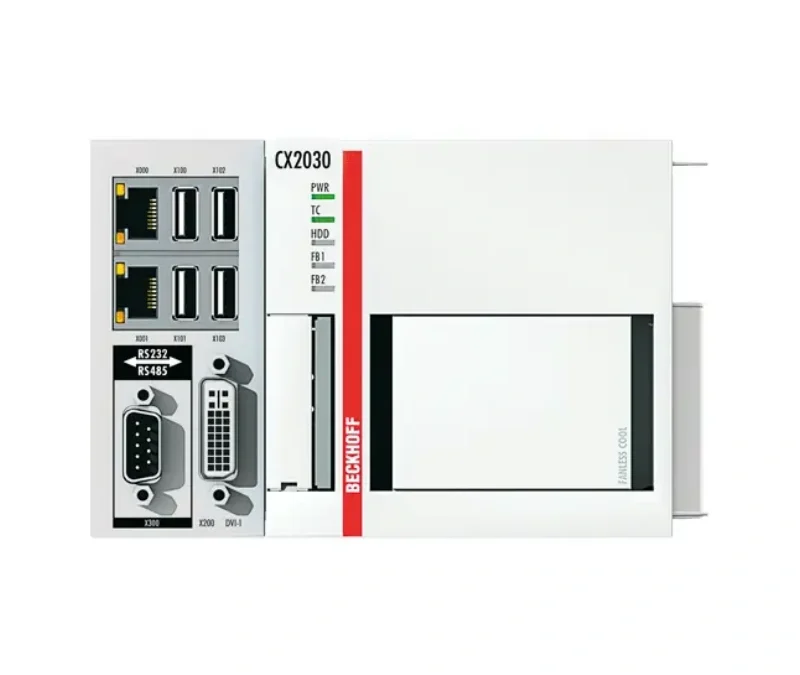

CX2030-0130 Beckhoff Basic CPU module
Model: CX2030-0130 Beckhoff Basic CPU module
Technical data CX2030 Proc…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Technical data | CX2030 |
|---|---|
| Processor | Intel® Core™ i7 2610UE 1.5 GHz |
| Number of cores | 2 |
| Flash memory | 20 GB or 40 GB CFast flash card (depending on the operating system), optionally extendable |
| Main memory | 2 GB DDR3 RAM (expandable ex factory to 4 GB) |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface |
| Cooling | passive, optionally with active cooling ex factory |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Windows Embedded Compact 7 (TwinCAT 3 supports only one CPU core), Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB, TwinCAT/BSD |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | via power supply module (E-bus or K-bus, automatic recognition) |
| Power supply | 24 V DC (-15%/+20%) |
| NOVRAM | 128 kB |
| Max. power consumption | 27 W |
| Weight | approx. 1165 g |
| Dimensions (W x H x D) | 144 mm x 99 mm x 91 mm |
| Relative humidity | 95%, no condensation |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL |
| TwinCAT 3 platform level | Mid Performance (60); please see here for an overview of all the TwinCAT 3 platform level |
