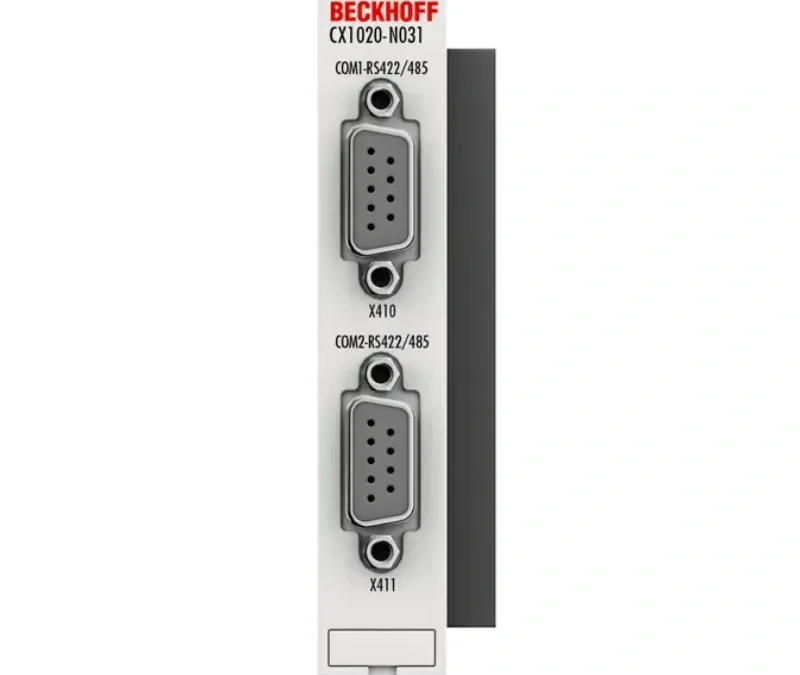

CX1020-N031 BECKHOFF System interfaces
Model: CX1020-N031 BECKHOFF System interfaces
Technical data CX1020-N031…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Technical data | CX1020-N031 |
|---|---|
| Interfaces | 1 x COM1 + 1 x COM2, RS422/RS485 |
| Type of connection | 2 x D-sub socket, 9-pin |
| Properties | max. baud rate 115 kbaud, not combinable with N030/N040 |
| Power supply | via system bus (through CX1100-xxxx power supply modules) |
| Dimensions (W x H x D) | 19 mm x 100 mm x 51 mm |
| Weight | approx. 80 g |
| Relative humidity | 95%, no condensation |
| Operating/storage temperature | 0…+55°C/-25…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
