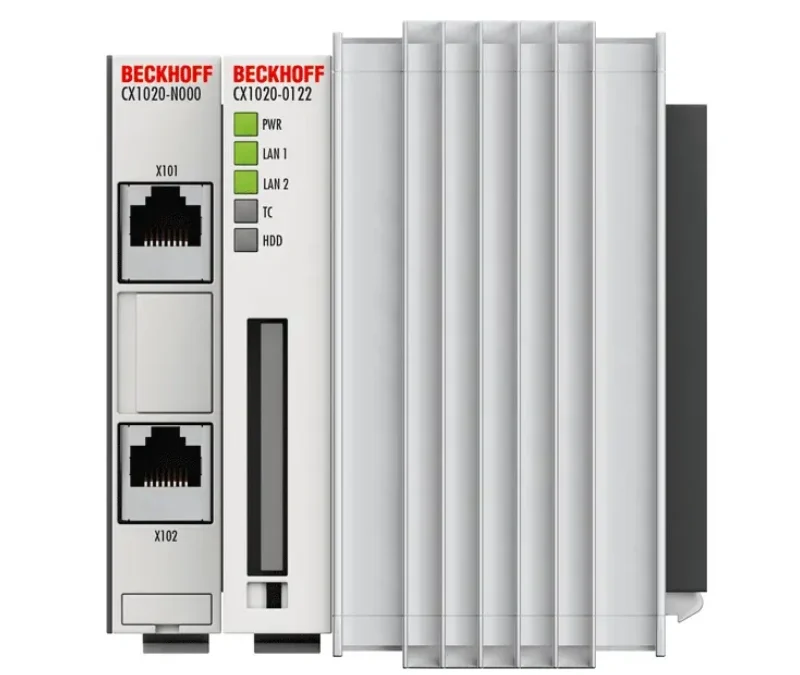

CX1020-0122 BECKHOFF Basic CPU Module Windows
Model: CX1020-0122 BECKHOFF Basic CPU Module Windows
Technical data CX1020 Proc…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Technical data | CX1020 |
|---|---|
| Processor | Intel® Celeron® M ULV, 1 GHz clock frequency |
| Number of cores | 1 |
| Flash memory | slot for Compact Flash card, 128 MB included (expandable) |
| Main memory | 256 MB DDR RAM (expandable ex factory to 1 GB) |
| Interfaces | 2 x RJ45 10/100 Mbit/s (internal switch) |
| Cooling | passive, optionally with active cooling ex factory |
| Diagnostics LED | 1 x power, 2 x LAN link/activity, TC status, 1 x flash access |
| Expansion slot | 1 x Compact Flash type I+II insert with eject mechanism |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Windows Embedded CE 6, Windows Embedded Standard 2009 |
| Control software | TwinCAT 2 PLC runtime, NC PTP runtime, NC I runtime |
| System bus | 16 bit ISA (PC/104) |
| I/O connection | via power supply module (E-bus, K-bus, K-bus/IP-Link) |
| Power supply | via system bus (through CX1100-xxxx power supply modules) |
| Max. power consumption | 11 W |
| Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
| Weight | approx. 550 g |
| Dimensions (W x H x D) | 96 mm x 112 mm x 99 mm |
| Relative humidity | 95%, no condensation |
| Operating/storage temperature | 0…+50°C/-25…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL |
