Beckhoff

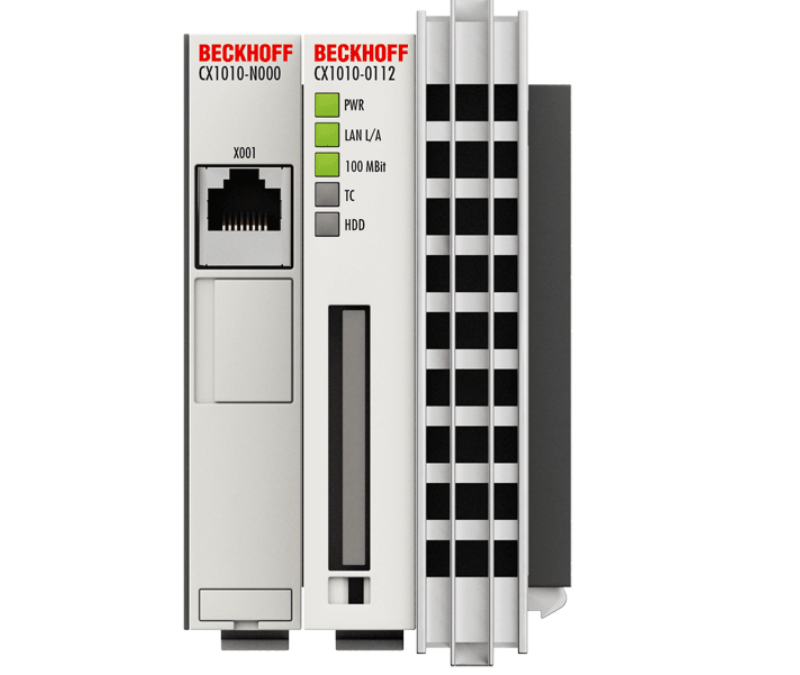

CX1010-0111 BECKHOFF CPU/Control Board
Model: CX1010-0111 BECKHOFF CPU/Control Board
Manufacturer : BECKHOFF Pa…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
- Manufacturer : BECKHOFF
- Part Number : CX1010-0111
- Processor : compatible with Intel® Pentium® MMX, clock frequency 500 MHz
- Number of cores : 1
- Flash memory : slot for Compact Flash card, 128 MB included (expandable)
- Main memory : 256 MB DDR RAM (not expandable)
- Interfaces : 1 x RJ45 10/100 Mbit/s
- Diagnostics : 1 x power, 1 x LAN speed, 1 x LAN activity, TC status, 1 x flash access
- Expansion slot : 1 x Compact Flash type II insert with ejector
- Clock : internal battery-backed clock for time and date (battery exchangeable)
- Operating system : Microsoft Windows Embedded CE 6.0
- Control software : TwinCAT 2 PLC runtime
- System bus : 16 bit ISA (PC/104)
- I/O connection : via power supply module (E-bus, K-bus, K-bus/IP-Link)
- Power supply : via system bus (through CX1100-xxxx power supply modules)
- Max. power consumption : 8 W
- Dimensions (W x H x D) : 58 mm x 120 mm x 91 mm
- Weight : approx. 355 g
- Relative humidity : 95 %, no condensation
- Operating/storage temperature : 0…+50 °C/-25…+85 °C
- EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4
- Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27
- Protection rating : IP20
- Approvals/markings : CE, UL
- Shipping weight : 2kg
