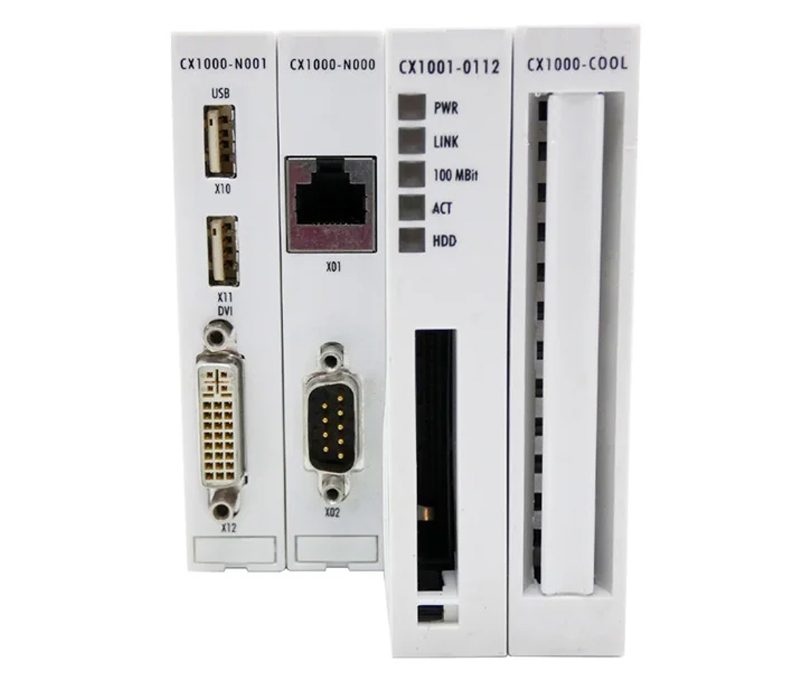

CX1000-N000 Beckhoff Basic CPU Module

Processor compatible with Pentium MMX, clock frequency 266 MHz
Flash memory 64 MByte Compact Flash card
Internal main memory 32 MByte RAM (expandable to 128 MByte)
Interfaces 1 x RJ45 (Ethernet) and 1 x 9-pinD-Sub (RS 232)
Diagnostics LED 1 x Power, 1 x Link, 1x 100 MBit , 1 x LAN Aktivit?t,
1 x Flash access
Expansion slot 1 x Compact Flash type II insert with ejector
Clock battery-powered internal clock for time and date
Operating system Microsoft Windows CE.NET or Microsoft
Windows XP Embedded
Control software TwinCAT PLC Runtime or TwinCAT NC PTP Runtime
System bus 16 Bit ISA (PC104 standard)
Power supply via system bus (through CX1100 power supply module)
Dimensions 57 mm x 100 mm x 91 mm
Weight approx. 355 g ( with DVI/USB 435 g)
