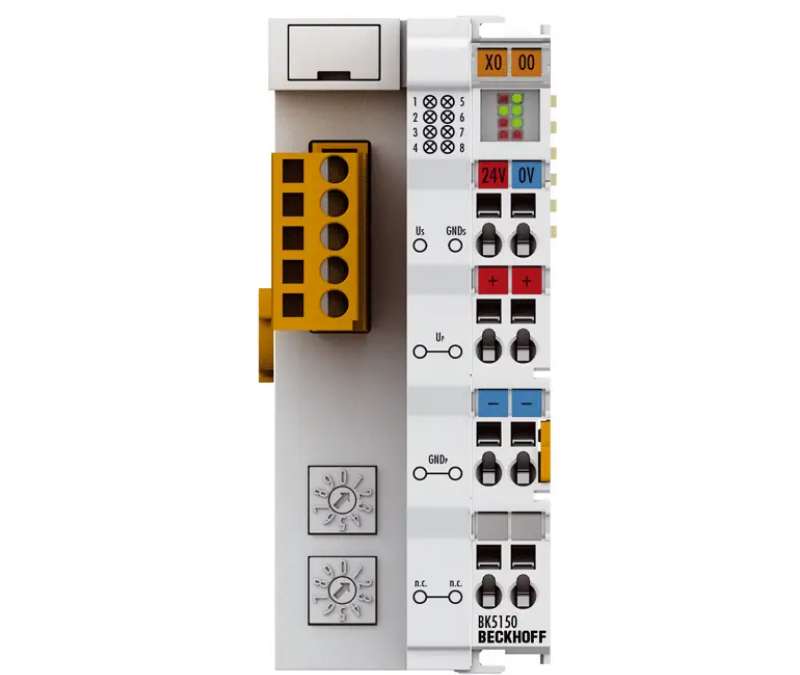

Bk5150 Beckhoff CANopen Compact Bus Coupler
Model: Bk5150 Beckhoff CANopen Compact Bus Coupler
Technical data BK5150 Numb…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Technical data | BK5150 |
|---|---|
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Max. number of bytes fieldbus | 16 Tx/Rx PDOs |
| Number of PDOs (CANopen) | 16 Tx/Rx PDOs |
| Additional CANopen features | life, node guarding, emergency object, variable mapping, store/restore |
| Data transfer rates | automatic detection up to 1 Mbaud |
| Bus interface | open style connector, 5-pin |
| Data transfer medium | screened, twisted copper cable, 2 x signal, 1 x ground (recommended) |
| Power supply | 24 V DC (-15%/+20%) |
| Serial interface | configuration interface |
| Diagnostics LED | 2 x power supply, 2 x K-bus, 2 x fieldbus |
| Current supply K-bus | 1750 mA |
| PDO modes | synchron, cyclic, event driven, polling |
| Weight | approx. 100 g |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Housing data | BKxx50, BCxx50 |
|---|---|
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 44 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
