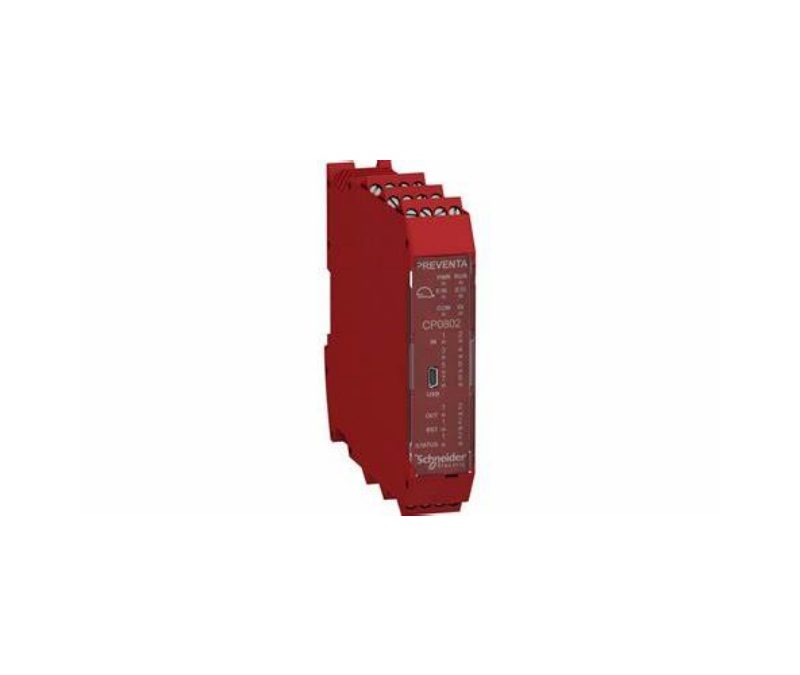

XPSMCMCP0802 schneider safety controller
Model: XPSMCMCP0802 schneider safety controller
Range of Product Modicon S…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Modicon Safety automation |
|---|---|
| Product or Component Type | Safety controller CPU |
| Device short name | XPSMCM |
| Electrical Connection | Screw terminal |
| [Us] rated supply voltage | 24 V – 20…20 % DC |
| Number of inputs | 8 digital input connection 2 digital interlock start/restart or external device monitoring |
| Number of outputs | 2 safety outputs OSSD contactor/drive connection 4 test line control outputs 2 configurable diagnostic connection |
| Discrete input voltage | 24 V |
| Discrete output current | 400 mA |
| Discrete input current | 400 mA |
| discrete input type | Safety input PNP |
| discrete output type | PNP |
| Function of module | Emergency stop EN/ISO 13850 Guard monitoring EN/ISO 14119 Enabling switch monitoring EN/IEC 60947-5-1 Light curtain monitoring EN/IEC 61496-1 Foot switch monitoring EN/IEC 60947-5-1 Magnetic switch monitoring EN/ISO 14119 Two-hand control EN 574 Safety mat monitoring EN/ISO 14119 Enabling switch monitoring EN 61326-1 Muting function of light curtains EN/IEC 60947-5-1 Counter functions EN/IEC 61800-5-2 Speed monitoring EN/IEC 61800-5-2 |
| Depth | 4.51 in (114.5 mm) |
|---|---|
| Height | 3.90 in (99 mm) |
| Width | 0.89 in (22.5 mm) |
| Net Weight | 0.55 lb(US) (0.25 kg) |
| Country of origin | IT |
|---|
