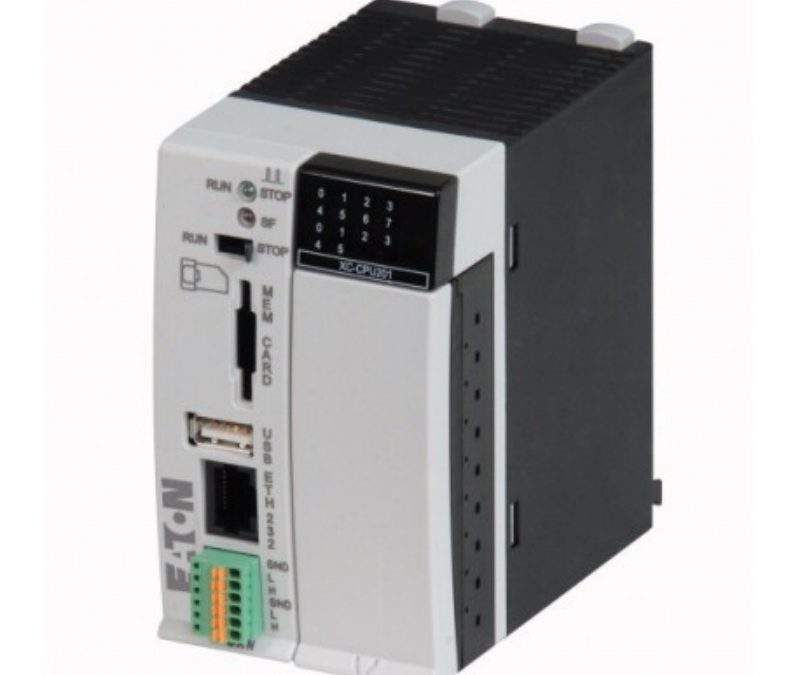

XC-CPU201-EC256K-8DI-6DO-XV Eaton ELECTRIC Modular PLC
Model: XC-CPU201-EC256K-8DI-6DO-XV Eaton ELECTRIC Modular PLC
Delivery program Digital i…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Delivery program
Digital input count Digital: 8; of which usable as interrupt: 6
Quantity of outputs Transistor: 6
Built-in interfaces CANopen®/easyNet
RS232 Ethernet 100Base-TX/10Base-T
RS232 Ethernet 100Base-TX/10Base-T
Instructions expandable with ￫ expansions XI/OC
Only on connection with ￫XI/OC rack
Only on connection with ￫XI/OC rack
User memory 256 Kbyte
Cycle time for 1 k of instructions (Bit, Byte) < 0.15 ms
Memory
Application/marker/retain data
256 KB/16 KB/32 KB
Technical data
General
Standards IEC/EN 61131-2
EN 50178
EN 50178
Ambient temperature 0 – +55 °C
Storage [ϑ] -25 – +70 °C
Mounting position Horizontal
Relative humidity, non-condensing (IEC/EN 60068-2-30) 10 – 95 %
Air pressure (operation) 795 – 1080 hPa
Vibration resistance 10 – 57 Hz ±0.075 mm
57 – 150 Hz ±1.0 g
57 – 150 Hz ±1.0 g
Mechanical shock resistance 15
Shock duration 11 ms g
Shock duration 11 ms g
Overvoltage category/pollution degree II/2
Degree of Protection IP20
Rated impulse withstand voltage [Uimp] 850 V
Emitted interference EN 61000-6-4, Class A
Interference immunity EN 61000-6-2
Battery (service life) normally 5 years
Weight 0.23 kg
Terminations Plug-in terminal block
Terminal capacitiesScrew terminalsFlexible with ferrule 0.5 – 1.5 mm2
Terminal capacitiesScrew terminalsSolid 0.5 – 2.5 mm2
Terminal capacitiesSpring-loaded terminalsflexible 0.34 – 1.0 mm2
Terminal capacitiesSpring-loaded terminalsSolid 0.14 – 1.0 mm
