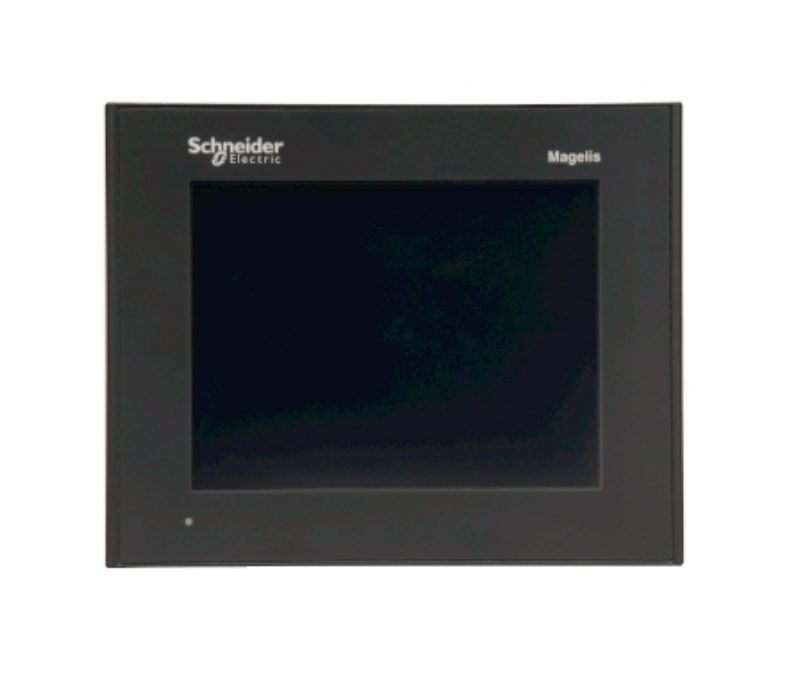

XBTGT2330 Schneider Operator Interface
Model: XBTGT2330 Schneider Operator Interface
Main Range of product Harm…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of product | Harmony XBTGT |
|---|---|
| Product or component type | Advanced touchscreen panel |
| Display type | Backlit colour TFT LCD |
| Display colour | 65536 colours |
| display resolution | 320 x 240 pixels QVGA |
| display size | 5.7 inch |
| Software type | Configuration software |
| Software designation | Vijeo Designer |
| operating system | Harmony |
| Processor name | CPU RISC |
| Processor frequency | 133 MHz |
| Touch sensitive zone | 1024 x 1024 |
|---|---|
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours |
| Brightness | 8 levels via touch panel |
| Character font | Japanese (ANK, Kanji) ASCII (European characters) Chinese (simplified Chinese) Korean Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| power consumption in W | 26 W |
| Product mounting | Flush mounting |
|---|---|
| Fixing mode | By 4 screw clamps By 2 spring clips |
| Front material | Aluminium alloy |
| Enclosure material | PPT |
| Marking | CE |
| Width | 167.5 mm |
| Height | 135 mm |
| Depth | 59.5 mm |
| Net weight | 1 kg |
