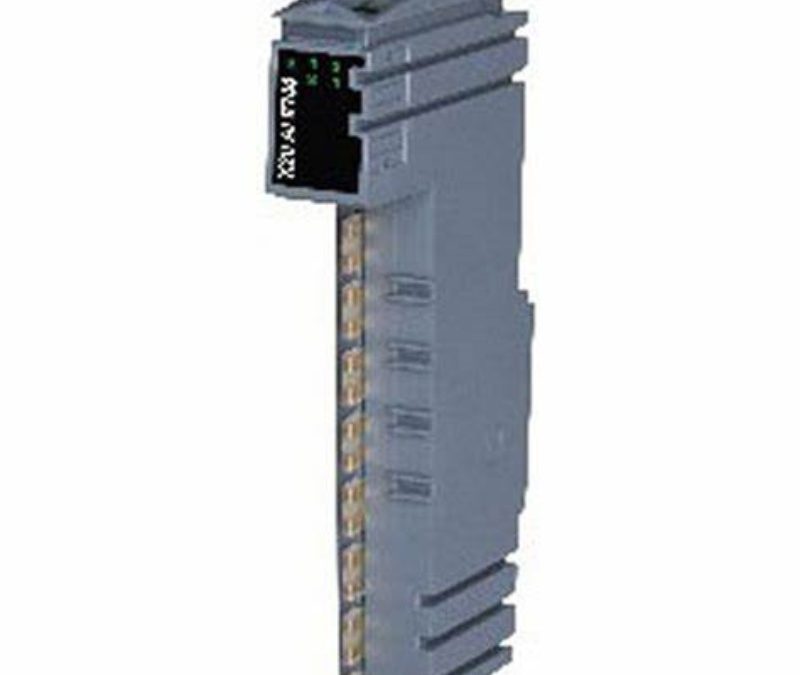

X20AIB744 B&R input module
Model: X20AIB744 B&R input module
Short description I/O modu…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Short description
| I/O module | 4 full-bridge strain gauge inputs |
General information
| B&R ID code | 0xE286 |
| Status indicators | Channel status, operating state, module status |
| Diagnostics | |
| Module run/error | Yes, using LED status indicator and software |
| Open circuit | Yes, using LED status indicator and software |
| Input | Yes, using LED status indicator and software |
| Power consumption | |
| Bus | 0.01 W |
| Internal I/O | 1 W |
| Additional power dissipation caused by actuators (resistive) [W] | +1.43 |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user’s manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| EAC | Yes |
Full-bridge strain gauge
| Strain gauge factor | 2 to 256 mV/V, configurable using software |
| Connection | 4-wire connections |
| Input type | Differential, used to evaluate a full-bridge strain gauge |
| Digital converter resolution | 24-bit |
| Conversion time | 200 µs |
| Data output rate | 5000 samples per second and per channel (fDATA) |
| Input filter | |
| Cutoff frequency | 2.5 kHz |
| Order | 3 |
| Slope | 60 dB |
| ADC filter characteristics | Sigma-delta, see section “Filter” |
| Operating range / Measurement sensor | 85 to 5000 Ω |
| Influence of cable length | Twisted and shielded conductors, cable length as short as possible, cable routing separate from load circuits, without intermediate terminal to sensor |
| Input protection | RC protection |
| Common-mode range | 0.6 to 3.8 VDC Permissible input voltage range (with regard to the electric potential strain gauge GND) on inputs “Input +” and “Input -“ |
| Insulation voltage between input and bus | 500 Veff |
| Conversion procedure | Sigma-delta |
| Output of digital value | |
| Broken bridge supply line | Value approaching 0 |
| Broken sensor line | Value approaching ±end value (status bit “Open circuit” set in register “Module status”) |
| Valid range of values | 0xFF800001 to 0x007FFFFF (-8,388,607 to 8,388,607) |
| Strain gauge supply | |
| Voltage | 5.5 VDC / Max. 65 mA per channel |
| Short-circuit and overload-proof | Yes |
| Quantization | |
| LSB value | |
| 2 mV/V | 1.31 nV |
| 4 mV/V | 2.62 nV |
| 8 mV/V | 5.25 nV |
| 16 mV/V | 10.49 nV |
| 32 mV/V | 20.98 nV |
| 64 mV/V | 41.96 nV |
| 128 mV/V | 83.92 nV |
| 256 mV/V | 167.85 nV |
| Max. gain drift | 35 ppm/°C |
| Max. offset drift | 15 ppm/°C |
| Nonlinearity | <10 ppm |
Electrical properties
| Electrical isolation | Bus isolated from analog input and strain gauge supply voltage Channel not isolated from channel and I/O power supply |
Operating conditions
| Mounting orientation | |
| Horizontal | Yes |
| Vertical | Yes |
| Installation elevation above sea level | |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature | |
| Operation | |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | See section “Hardware configuration” |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Relative humidity | |
| Operation | 5 to 95%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB1F separately. Order 1x bus module X20BM11 separately. |
| Pitch | 12.5+0.2mm |
