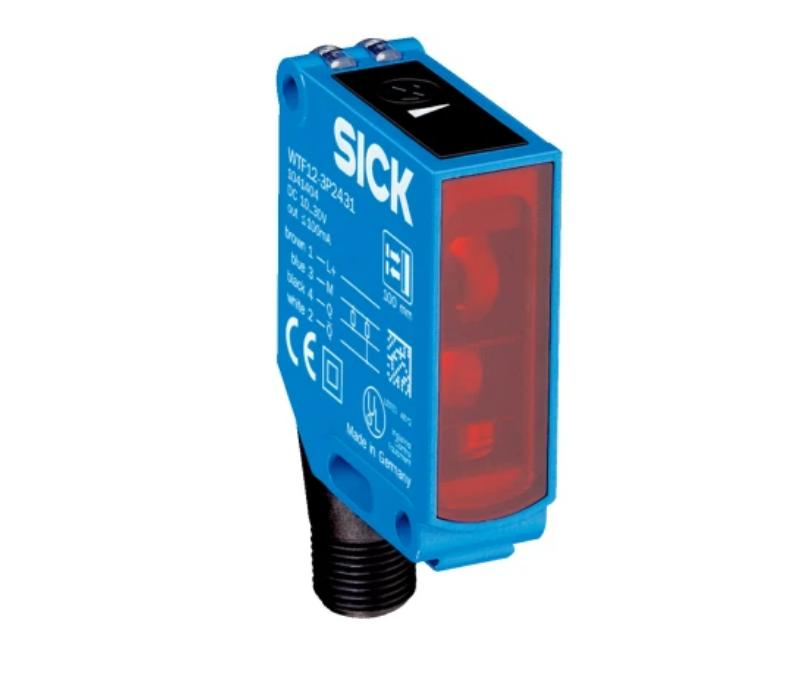

WTF12-3P2441 SICK Photoelectric proximity sensor
Model: WTF12-3P2441 SICK Photoelectric proximity sensor
Attribute Value Sensor Sty…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
|
Attribute
|
Value
|
|---|---|
| Sensor Style | Block |
| Detection Type | Foreground Suppression |
| Detection Range | 30 mm → 500 mm |
| Output Type | PNP |
| Electrical Connection | M12 Connector |
| Maximum DC Voltage | 30V |
| Terminal Type | 4 Pin Connector |
| Light Source | Red Light |
| IP Rating | IP66, IP67, IP69K |
| Maximum Current | 100 mA |
| Response Time | 0.00033 seconds |
| Housing Material | Metal |
| Minimum Operating Temperature | -40°C |
| Series | W12-3 |
| Maximum Operating Temperature | +60°C |
| Standards Met | CE Certified, UL Certified |
