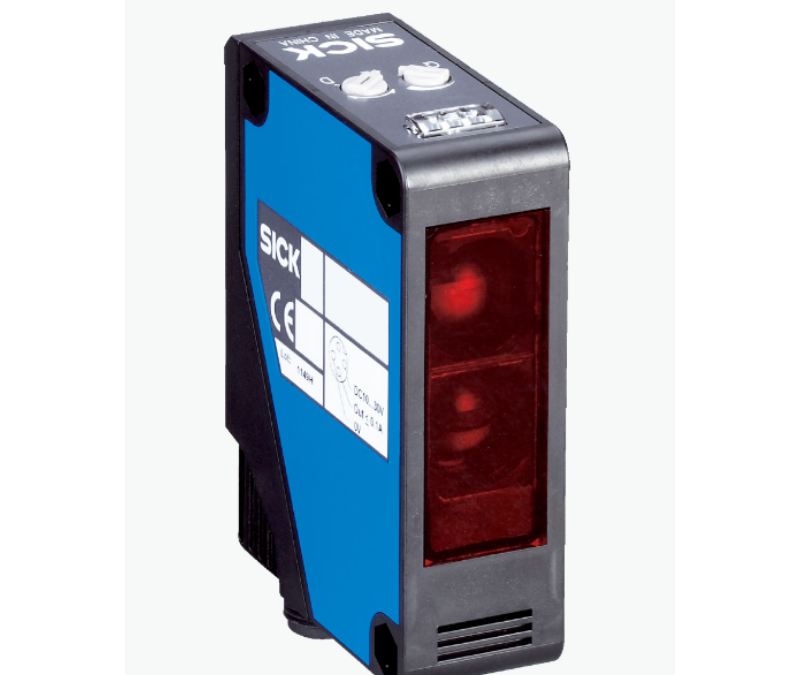

WTE280-1531 Sick Proximity Sensors
Model: WTE280-1531 Sick Proximity Sensors
Functional principle Photo…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 23.5 mm x 74.5 mm x 63 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 10 mm … 2,000 mm 1) |
| Sensing range | 10 mm … 1,500 mm |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 45 mm (1,500 mm) |
| Adjustment | Potentiometer adjustable via sensing range adjustment |
| Supply voltage UB | 24 V DC … 240 V DC 1)
24 V AC … 240 V AC 1) |
| Power consumption | ≤ 5 VA |
| Switching output | Relay, electrically isolated 2) |
| Output function | Change-over contacts |
| Switching mode | Light switching 2) |
| Switching current (switching voltage) | 3 A (240 V AC)
3 A (30 V DC) |
| Response time | ≤ 15 ms |
| Switching frequency | 33 Hz 3) |
| Connection type | Cable, 5-wire, 2 m 4) |
| Cable material | PVC |
| Conductor cross section | 0.76 mm² |
| Circuit protection | A 5)
C 6) |
| Protection class | II 7) |
| Overvoltage category | 2 |
| Weight | 150 g |
| Interference emission | EN 61000-6-3 (only –2Hxxxx) 8) |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66
IP67 |
| Items supplied | Mounting bracket BEF-W280 |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 EN 61000-6-3 (only –2Hxxxx) 9) 9) |
| Ambient operating temperature | –25 °C … +55 °C |
| Ambient temperature, storage | –40 °C … +70 °C |
