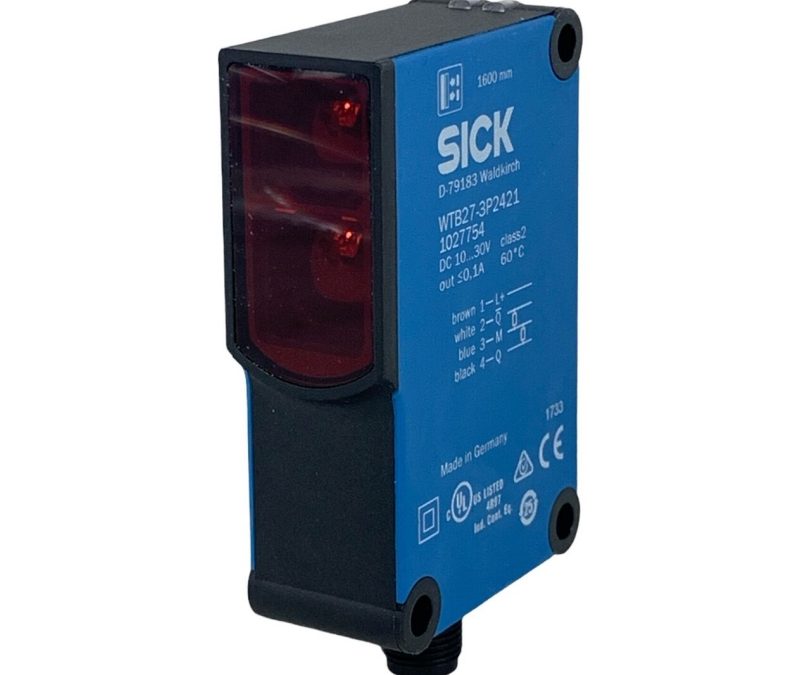

WTB27-3P2421 SICK photoelectric sensor
Model: WTB27-3P2421 SICK photoelectric sensor
Features Sensor/detection …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Features | |
| Sensor/detection principle: | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D): | 24.6 mm x 80.6 mm x 54 mm |
| Housing design (light emission): | Rectangular |
| Sensing range max.: | 30 mm … 1,600 mm 1) |
| Sensing range: | 100 mm … 1,600 mm |
| Type of light: | Infrared light |
| Light source: | LED 2) |
| Wave length: | 880 nm |
| Adjustment: | Potentiometer |
| Light spot size (distance): | Ø 25 mm (800 mm) |
| 1) Object with 90 % reflectance (referred to standard white, DIN 5033) 2) Average service life of 100,000 h at TA = +25 °C | |
| Mechanics/electronics | |
| Supply voltage: | 10 V DC … 30 V DC 1) |
| Ripple: | ≤ 5 Vpp 2) |
| Power consumption: | ≤ 55 mA 3) |
| Switching output: | PNP |
| Output function: | Complementary |
| Switching mode: | Light/dark-switching |
| Output current Imax.: | ≤ 100 mA |
| Response time: | ≤ 1.5 ms 4) |
| Switching frequency: | ± 350 Hz 5) |
| Connection type: | Connector M12, 4-pin |
| Circuit protection: | A, B, C 6) 7) 8) |
| Protection class: | II 9) |
| Weight: | 100 g |
| Front screen heating: |  |
| IO-Link: | – |
| Special device: | – |
| Housing material: | ABS, Plastic |
| Optics material: | PMMA |
| Enclosure rating: | IP 69K |
| Ambient operating temperature: | -40 °C … 60 °C |
| Ambient storage temperature: | -40 °C … 75 °C |
| UL File No.: | NRKH.E181493 & NRKH7.E181493 |
| Signal voltage PNP HIGH/LOW: | Approx. VS – 2.5 V / 0 V |
