| Authentication Method |
Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity |
Virtual interfaces (VLANs) : 1005 |
| Compliant Standards |
TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950- |
| Depth |
18.1 in |
| Device Type |

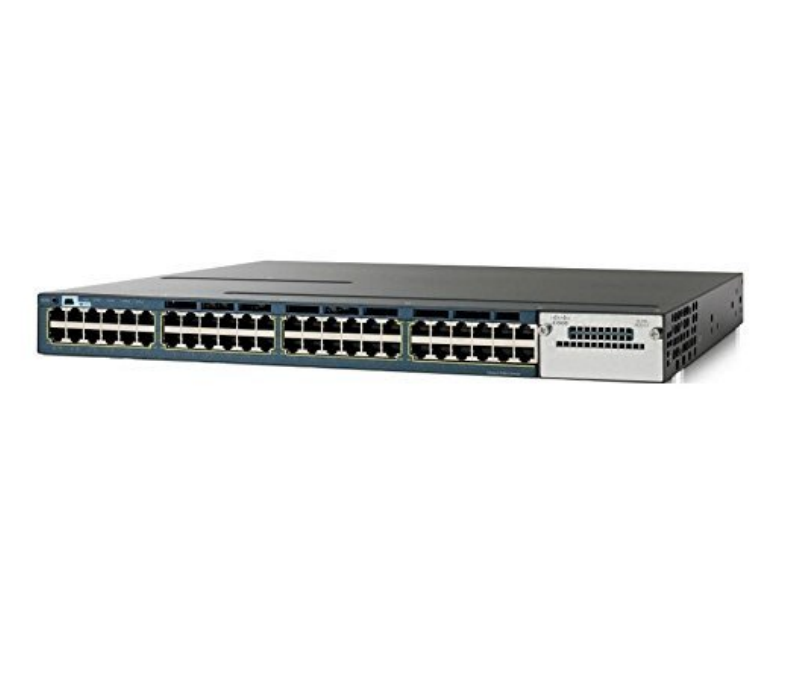

Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type |
Rack-mountable – 1U |
| Expansion Slots |
1 (total) / 1 (free) x expansion slot |
| Features |
Redundant Power System (RPS) connector |
| Flash Memory |
64 MB |
| Height |
1.8 in |
| Humidity Range Operating |
5 – 95% (non-condensing) |
| Installed Qty |
1 (installed) / 2 (max) |
| Interfaces |
48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE+ – 30 W |
| Jumbo Frame Support |
9216 bytes |
| Max Storage Temperature |
158 |
| Max Units In A Stack |
9 |
| Min Operating Temperature |
23 |
| Min Storage Temperature |
-40 |
| MTBF |
139,913 hours |
| Performance |
Switching fabric bandwidth : 160 Gbps |
| PoE Budget |
435 W |
| Ports |
48 x 10/100/1000 (PoE+) |
| Power Device |
Internal power supply |
| Power Over Ethernet (PoE) |
PoE+ |
| Power Provided |
715 Watt |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Rack Mounting Kit |
Optional |
| RAM |
256 MB |
| Remote Management Protocol |
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Routing Protocol |
OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based |
| Service & Support Details |
Limited warranty – lifetime |
| Service & Support |
Limited lifetime warranty |
| Software Included |
Cisco IOS IP Services |
| Status Indicators |
Port status, link activity, port transmission speed, port duplex mode, power, system |
| Subtype |
Gigabit Ethernet |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| Weight |
16.53 lbs |
| Width |
17.5 in |
