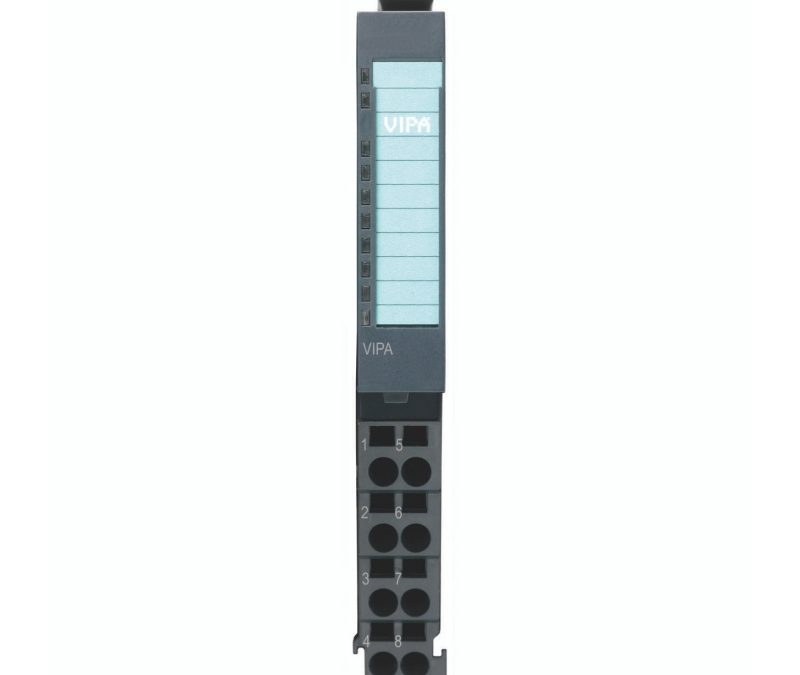

VIPA 022-1BF00 DIGITAL OUTPUT MODULE
Model: VIPA 022-1BF00 DIGITAL OUTPUT MODULE
Product Information Descri…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product Information
Description:
-
0221BF00
-
DIGITAL OUTPUT MODULE
-
SLIO SM022
-
8 DIGITAL OUTPUTS
-
0.5 AMP
-
24 VDC
- Part # 022-1BF00
- Category Controls & Indicators
- Subcategory Signal Conditioner/Transmitter
- Weight 0.15 lbs
- Manufacturer: VIPAType: Digital Output Module
Model: SM 022-1BF00
Order No.: 022-1BF00
Current Consumption from Backplane Bus: 80 mA
Power Loss: 0.7 W
Number of Outputs: 8
Rated Load Voltage: 20.4 … 28.8 VDC
Current Consumption from Load Voltage L+ (Without Load): 15 mA
Status Display: green LED per channel
Output Current at Signal “1”, Rated Value: 0.5 A
Lamp Load: 10 W
Signal Logic Output: Sourcing output
Material: PPE / PPE GF10
Operating Temperature: 0 … 60 °C
Dimensions: 12.9 X 58 X 62 mm
Weight: 0.06 kg
