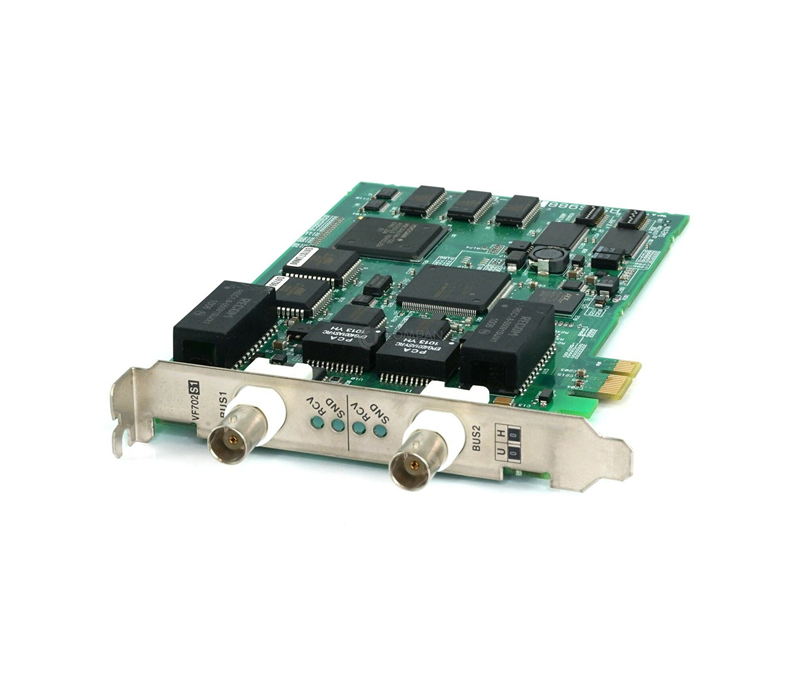

VF702-S1 Yokogawa Network Interface Card

Specifications of Yokogawa VF702-S1 Network Interface Card VF702 DCS Module

By installing the control bus interface card into the PCI Express slot of the PC/AT compatible computer, the computer is connect

GENERAL  of Yokogawa VF702-S1 Network Interface Card VF702 DCS Module

By installing the control bus interface card into the PCI Express slot of the PC/AT compatible computer, the computer is connected to V net.

FUNCTION of Yokogawa VF702-S1 Network Interface Card VF702 DCS Module

Interface between the PCI Express and Vnet/IP

SPECIFICATIONS of Yokogawa VF702-S1 Network Interface Card VF702 DCS Module

For conforming standards of the CENTUM VP system, see “System Overview (Vnet/IP Edition)” (GS33K01A10-50E).
Communication Speed: 1 Gbps Full Duplex

Connection Specifications of Yokogawa VF702-S1 Network Interface Card VF702 DCS Module

  Connection method: Connect a coaxial cable with Model YCB146, T-type connector

Transmission: 10BASE-2 compliance
 Connector: BNC connector
 Max. distance: 185 m (When using 10BASE-2 cable only)

PCI Express Specifications of Yokogawa VF702-S1 Network Interface Card VF702 DCS Module

Applicable revision:PCI Express CEM Specification 1.0a x1, 2.5 GT/s signaling

This card can be installed in a PCI Express slot (x1 to x16).
 This card cannot be installed in a PCI slot.

Voltage: Power supply voltage: 3.3 V ± 9 %

Current Consumption:  Max. 2.4 A

Weight:  Approx. 0.15 kg (T-type connector excluded)

External Dimensions:  22 (w) 126.5 (H) 193.54 (D) mm;

Regulartory Compliance
EMC Standards:
[CE Marking]
[C-Tick Marking]
[KC Marking]

PARTS NAME AND FUNCTIONS  of Yokogawa VF702-S1 Network Interface Card VF702 DCS Module

RDY lamp:Lights when it diaghoses the card as normal.

RCV lamp: Lights when it detects signals on a control bus.

SND lamp:Lights when it sends signals to a control bus.

Ethernet connector: Connects a CAT5e (Enhanced Category 5 cable)
