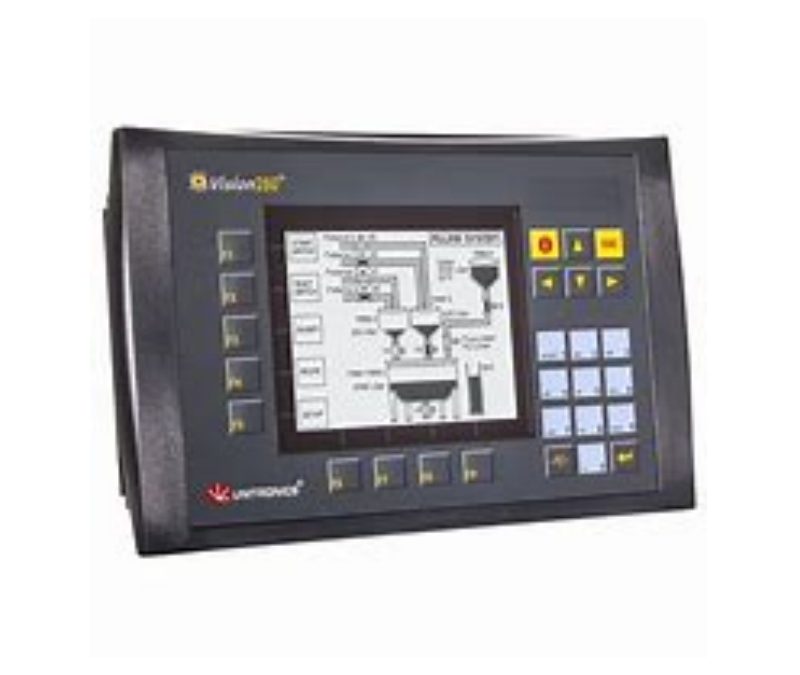

V280-18-B20B UNITRONICS touchscreen
Model: V280-18-B20B UNITRONICS touchscreen
Primary brand Unitronics M…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Primary brand
Unitronics
Main function
HMI / Display unit
Product series / family name
Vision series
Sub-range name
V280
Functions
Advanced programmable touchscreen HMI
UniCAN
CANbus
M-bus
Auto-tune PID up to 12 independent loops
Recipes; Data logging via data tables and sampling
Date / time based control
Remotely expansion via CANbus based I/O
E-mail
SMS
Remote access utilities
255 user-designed screens
HMI graphs / trends
Memory and communication monitoring via HMI
UniCAN
CANbus
M-bus
Auto-tune PID up to 12 independent loops
Recipes; Data logging via data tables and sampling
Date / time based control
Remotely expansion via CANbus based I/O
SMS
Remote access utilities
255 user-designed screens
HMI graphs / trends
Memory and communication monitoring via HMI
Design
keypad (27 keys with user markable soft keys; alphanumeric keypad)
Supply voltage (DC)
10.2Vdc-28.8Vdc (12Vdc / 24Vdc nom.)
Display
4.7″ 320x240pixels (QVGA) FSTN LCD monochrome (Black/White) display with C.C.F.L. fluorescent lamp backlight
Memory capacity
120kB (RAM for data; dynamic)
192kB (RAM for data; fixed)
1MB (application memory)
192 timers
24 counters
192kB (RAM for data; fixed)
1MB (application memory)
192 timers
24 counters
Connection capacity
Expansion up to 316 I.O.s
Connection type
2 x RJ11 connectors
1 x CANbus port
1 x CANbus port
Communication protocol
Ethernet/IP
Modbus
GPRS
GSM
RS-232
RS-485
BACnet
CANopen
Modbus
GPRS
GSM
RS-232
RS-485
BACnet
CANopen
Mounting mode
Landscape flush mounting
Degree of protection
IP65
NEMA 4X
NEMA 4X
Net Height (mm)
155 mm
Net Width (mm)
260 mm
Net Depth (mm)
72 mm
Ambient air temperature for operation
0…+50 °C
Processing time
30μs (per 1K of typical application) – 0.03 ms
Application type
Hazardous Class I
Order code / Manufacturer SKU
V280-18-B20B
Manufacturer product status
Commercialized
Compliant with standard(s)
UL
CE
EAC
CE
EAC
