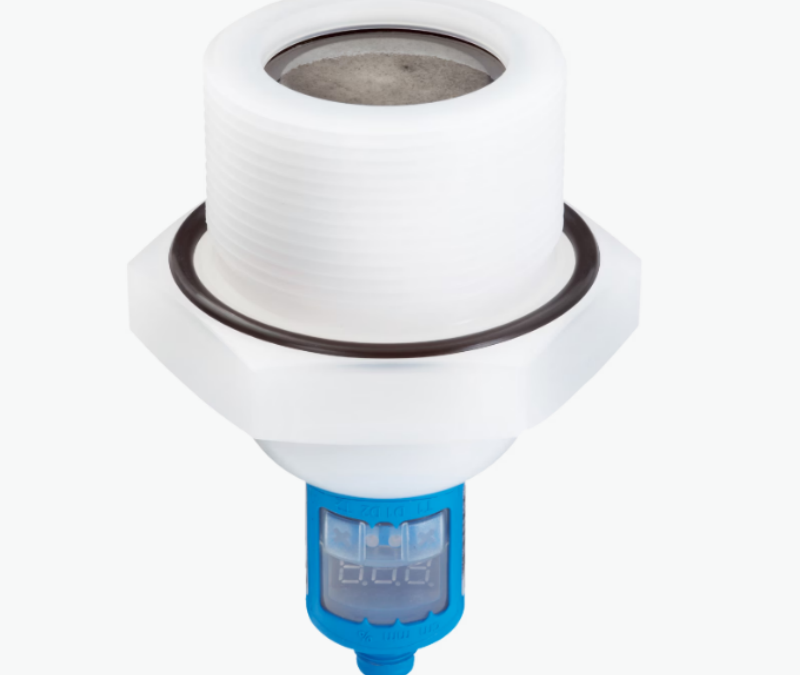

UP56-214178 6039866 SICK Ultrasonic sensor level
Model: UP56-214178 6039866 SICK Ultrasonic sensor level
Medium Fluids, bulk solids…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Medium | Fluids, bulk solids |
| Measurement | Switch, Continuous |
| Measuring range in tank | 350 mm … 3,400 mm |
| Measuring range immersion tube | 350 mm … 8,000 mm |
| Process pressure | 0 bar … 6 bar Gauge pressure |
| Process temperature | –25 °C … +70 °C |
| Accuracy of sensor element | ≤ 2 % 1) |
| Reproducibility | ± 0.15 % 1) |
| Resolution | ≤ 0.18 mm |
| Response time | ≤ 240 ms 2) |
| MTTF | > 100 years |
| Supply voltage | 9 V DC … 30 V DC 1) |
| Residual ripple | ± 10 % |
| Power consumption | ≤ 80 mA 2) |
| Protection class | III |
| Connection type | Round connector M12 x 1, 5-pin |
| Output signal | 1 x PNP + 4 mA … 20 mA / 0 V … 10 V 3) 4) |
| Hysteresis | 50 mm |
| Output current | 200 mA |
| Time delay before availability | ≤ 300 ms |
| Enclosure rating | IP67 |
| Ultrasonic frequency | 120 kHz |
| Ultrasonic transducer | PTFE coating, FFKM |
| Weight | 350 g |
