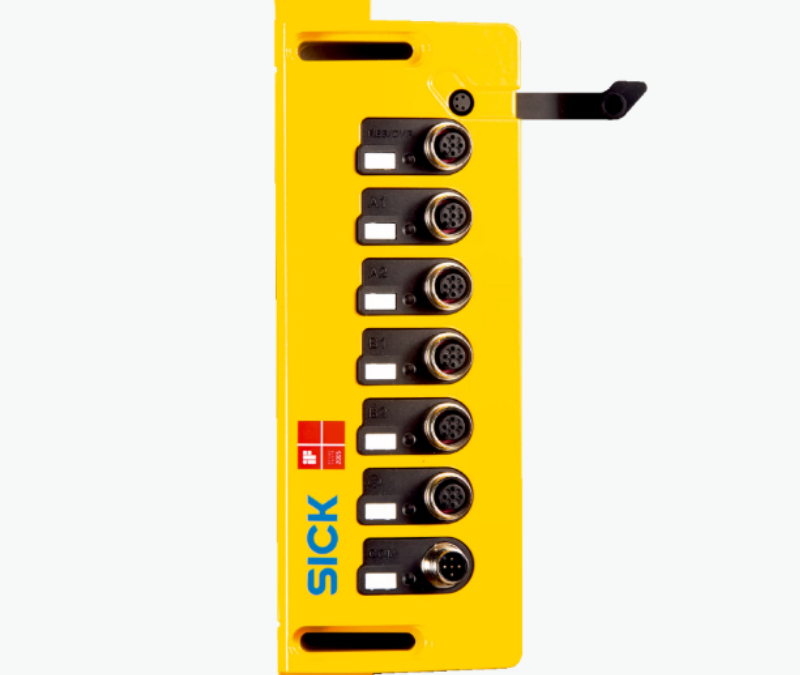

| Protection class |
III (IEC 61140) |
| Supply voltage VS |
24 V DC (19.2 V DC … 28.8 V DC) 1) |
| Power consumption |
≤ 2 A |
| Inputs: override, reset, C1, belt stop, muting sensors |
|
| ON state, switching voltage HIGH |
24 V DC (11 V DC … 30 V DC) |
| OFF state, switching voltage LOW |
0 V DC (–30 V DC … 5 V DC) |
| Input current HIGH |
6 mA … 15 mA |
| Input current LOW |
–0.5 mA … 1.5 mA |
|
| Outputs: voltage supply for reset, override, C1 |
|
| Supply voltage |
24 V DC (15 V DC … 28.8 V DC) |
| Output current |
≤ 400 mA 2) |
|
| Outputs: muting sensors |
|
| Supply voltage |
24 V DC (15 V DC … 28.8 V DC) |
| Output current |
≤ 500 mA 2) |
|
| Muting lamp |
|
| Output current HIGH (monitored) |
20 mA … 400 mA 3) |
| Output current HIGH (not monitored) |
0 mA … 400 mA 3) |
|
