TSXDEY16FK Schneider Discrete input module

Schneider Schneider

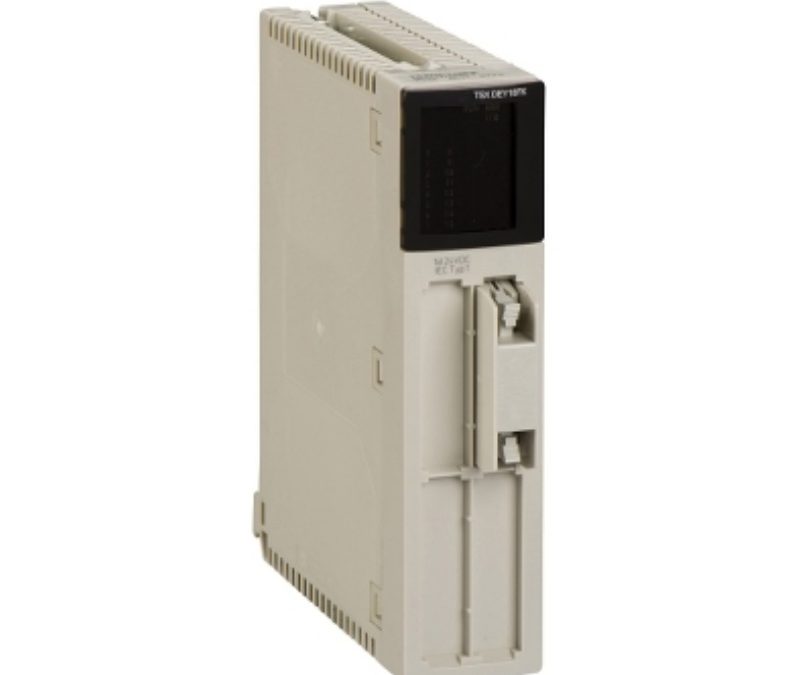

Model: TSXDEY16FK Schneider Discrete input module

Main Range of Product Modi…

Request a Quote

Genuine products, direct from the factory
Technical selection and commissioning support
Bulk purchasing and customization available

Specifications & Service

MOQ	1 PCS
Warranty	1 year
Delivery Time	3-5 days
Shipping	FedEx/DHL/UPS/TNT
Payment	TT/Western Union

Product Details

Main
Range of Product	Modicon Premium Automation platform
Product or Component Type	Discrete input module
Discrete input number	16 current sink isolated fast EN/IEC 61131-2 type 1
Discrete input voltage	24 V DC positive
Sensor power supply	19…30 V
Discrete input current	3.5 mA

Complementary
Voltage state 1 guaranteed	>= 11 V
Current state 1 guaranteed	>= 3 mA
Voltage state 0 guaranteed	<= 5 V
Current state 0 guaranteed	<= 1.5 mA
Input impedance	6300 Ohm at state 1
Response Time	0.1…7.5 ms
isalotion resistance	< 10 MOhm 500 V DC

Power dissipation	(1.2 W + 0.1 W x No of channels used)
Electrical Connection	HE-10 connector
marking	CE
Current consumption	250 mA 5 V DC 75 mA 24 V DC
Module format	Standard
Net Weight	0.7 lb(US) (0.3 kg)
