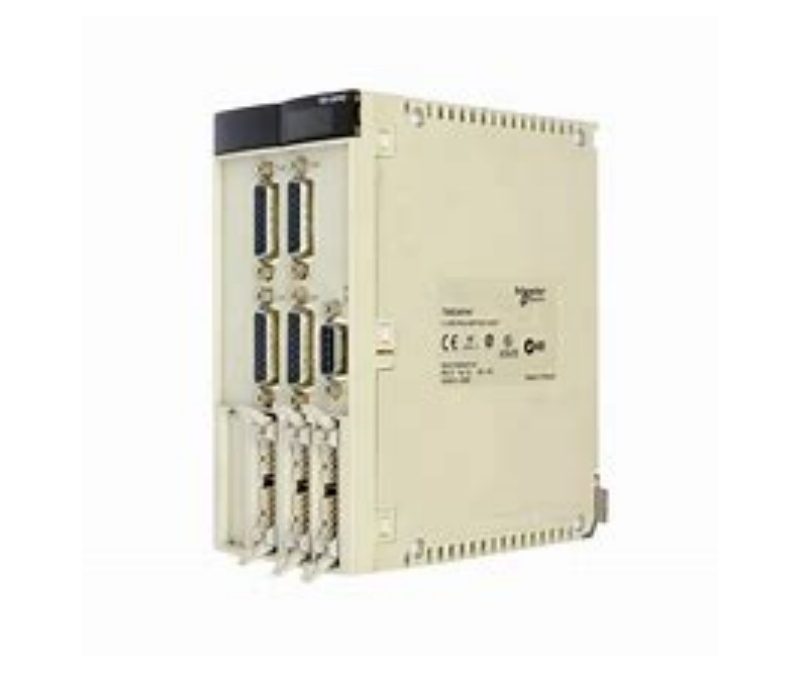

TSXCAY41 Schneider Motion control modules
Model: TSXCAY41 Schneider Motion control modules
Main Range of Product Modi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Modicon Premium Automation platform |
|---|---|
| Product or Component Type | Motion control modules |
| Product Specific Application | For servo motors |
| Servo loop type | Proportional to overshoot compensation and gain switching 4 ms |
| Checks | Presence of voltage/sensor feedback counter input Consistency of commands Encoder coupling, servo drive present, emergency stop Proper execution of movement Sensor power supply Validity of parameters |
| Speed profile path | Trapezoidal or parabolic |
|---|---|
| Resolution | >= 0.5 position units per point <= 1000 position units per point |
| Length of axis | 32000…32000000 P |
| Acquisition speed | <= 270000 points/mn >= 54000 points/mn |
| Acceleration time | 8 ms…10 s |
| Operating Mode | Automatic OFF Direct drive mode FOLLOWER Manual |
| Type of axis | Following axis static ratio Limited axis |
| I/O modularity | 4 axes |
| Input compatibility | Absolute encoder SSI output 16…25 bits Incremental encoder 10…30 V totem pole Incremental encoder 5 V DC RS422 With 2-wire/3-wire sensor (24 DC) auxiliary input Absolute encoder parallel output ABE7CPA11 |
| Clock frequency | 200 kHz SSI absolute encoder |
| Incremental encoder frequency x1 | 500 kHz |
| Incremental encoder frequency x 4 | 1000 kHz in counting 250 kHz in input |
| Package 1 Height | 3.74 in (9.5 cm) |
|---|---|
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.24 in (26.0 cm) |
| Package 1 Weight | 31.18 oz (884.0 g) |
| Country of origin | FR |
|---|
