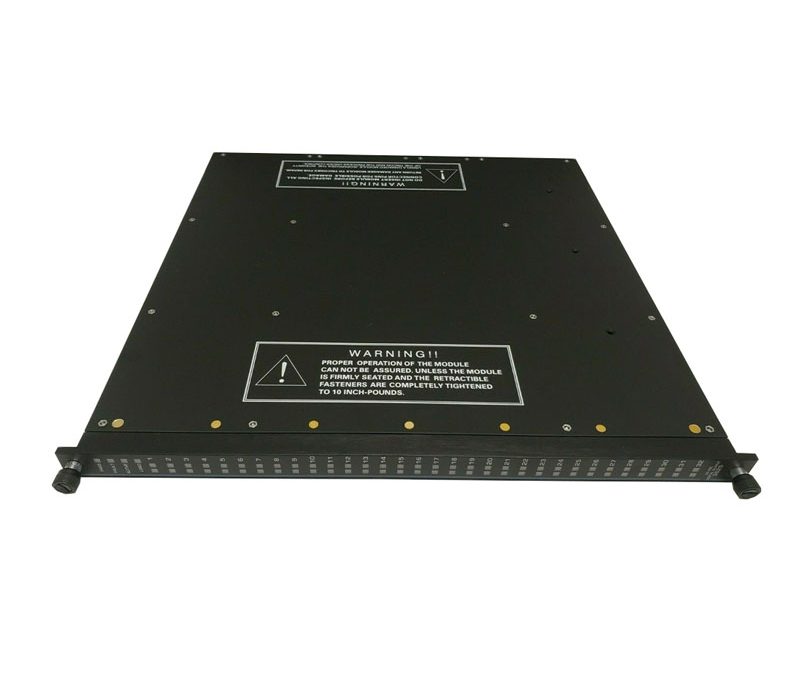

Triconex 3625 Triconex Digital 24VDC Output Module
Model: Triconex 3625 Triconex Digital 24VDC Output Module
Nominal voltage 24 VDC Typ…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Nominal voltage 24 VDC
Type TMR, supervised/unsupervised DO
Output signal 32, general purpose
Voltage range 16-32 VDC
The maximum voltage is 36 VDC
Voltage drop <2.8 VDC @ 1.7a, typical
Power module load <13 watts
Current rating, Max. 1.7a per point 7A surge per 10ms
Minimum required load 10 mA
Maximum load leakage of 4 mA
Fuse n/a self-protection (when terminated in the field)
Point isolation 1500 VDC
Diagnostic indicator light
On or off state 1 per point
Module status through, failure, load, activity
On-site alarm load (1 per point)
Color code dark blue
