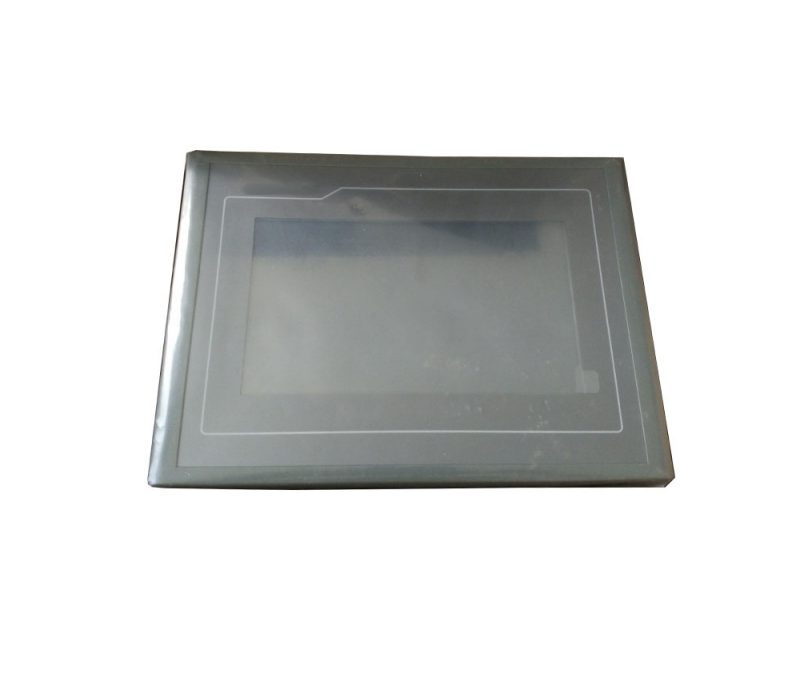

TPC1031KT MCGS HMI Touch Screen Display touch
Model: TPC1031KT MCGS HMI Touch Screen Display touch
LCD screen 10.1 “TFT LCD s…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
- LCD screen 10.1 “TFT LCD screen,
- Resolution 1024×600, LED backlight
- Touch screen Four-wire resistive
- Memory 256M
- CPU motherboard with Cortex 4-core CPU as the core, main frequency 800MHz
- Vibration frequency 10～57Hz 57～150Hz
- Working temperature 0℃～45℃
- Working humidity 5%～90%
- Vibration acceleration 0.075mm 9.8m/s²
- Storage device NAND 128M
- Storage temperature -10℃～60℃
- Interface 1×RS232, 2×RS485, 2×USB (1 master and 1 slave), 1×LAN
- Vibration sweep rate Oct/min≤1
- Dimensions(LxWxH):27.4×19.3×4.27cm
- Weight:1.4kg
- Country of Origin: China
