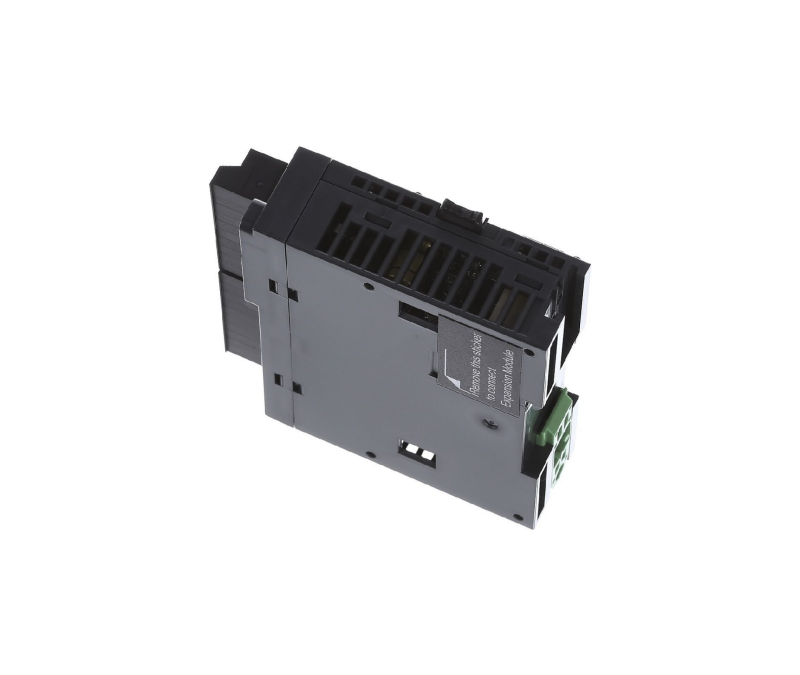

TM3AI8 Schneider Electric Analog Input Module
Model: TM3AI8 Schneider Electric Analog Input Module
Manufacturers Schneider Mo…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Schneider
Model(s)
Schneider module
Product Description
- Part No. : TM3AI8
- Range of product: Modicon TM3
- Product or component type: Analog input module
- Range compatibility: Modicon M221, Modicon M241, Modicon M251,Modicon M262
- Analogue input number: 8
- Analogue input type: Current 4…20 mA, Current 0…20 mA, Voltage 0…10 V, Voltage – 10…10 V
- Analogue input resolution: 12 bits, 11 bits + sign
- Permissible continuous overload: 13 V, analogue input type: voltage, 40 mA, analogue input type: current
- Input impedance: <= 50 Ohm current, >= 1 MOhm voltage
- LSB value: 2.44 mV 0…10 Vvoltage, 4.88 mV – 10…10 Vvoltage, 4.88 µA 0…20 mAcurrent, 3.91 µA 4…20 mAcurrent
- Conversion time: 1 ms + 1 ms per channel + 1 controller cycle time
- Sampling duration: 1 ms
- Absolute accuracy error: +/- 1 % of full scale, +/- 0.2 % of full scale at 25 °C
- Temperature drift: +/- 0.01 %FS/°C
- Repeat accuracy: +/-0.5 %FS
- Non-linearity: +/- 0.2 %FS
- Cross talk: <= 1 LSB
- [Us] rated supply voltage: 24 V DC
- Supply voltage limits: 20.4…28.8 V
- Type of cable: Twisted shielded pairs cable <30 m for input circuit
- Dimensions (HxWxD) : 2.5 cm x 9.5 cm x 8.9 cm
- weight: 0.1 kg
- Country of Origin: Japan
