Schneider

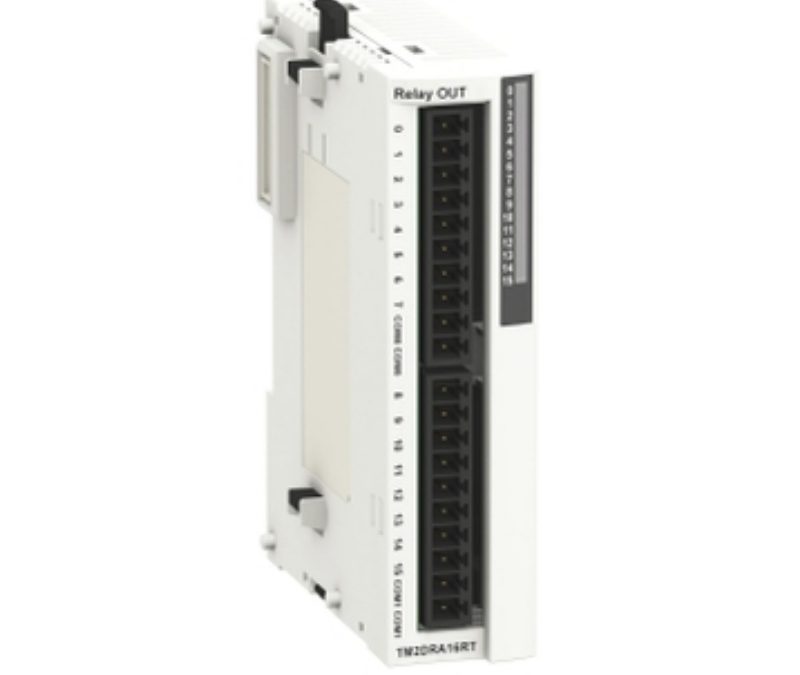

TM2DRA16RT Schneider I/O expansion module
Model: TM2DRA16RT Schneider I/O expansion module
Main Range of Product Modi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Modicon M238 logic controller |
|---|---|
| Product or Component Type | I/O expansion module |
| Discrete output number | 16 |
| Discrete output type | Relay |
| Range Compatibility | Twido Advantys OTB |
|---|---|
| Discrete output function | 1 NO |
| Current per channel | 2 A |
| Maximum current per output common | 8 A |
| Number of common point | 2 |
| Contact resistance | 45 mOhm |
| Response time | <= 10 ms from state 0 to state 1 input <= 5 ms from state 1 to state 0 input |
| Minimum switching current | 0.1 mA 0.1 V DC |
| Local signalling | 1 display block |
|---|---|
| Electrical connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail |
| Net Weight | 0.320 lb(US) (0.145 kg) |
| Depth | 3.3 in (84.6 mm) |
|---|---|
| Height | 3.5 in (90 mm) |
| Width | 1.07 in (27.3 mm) |
