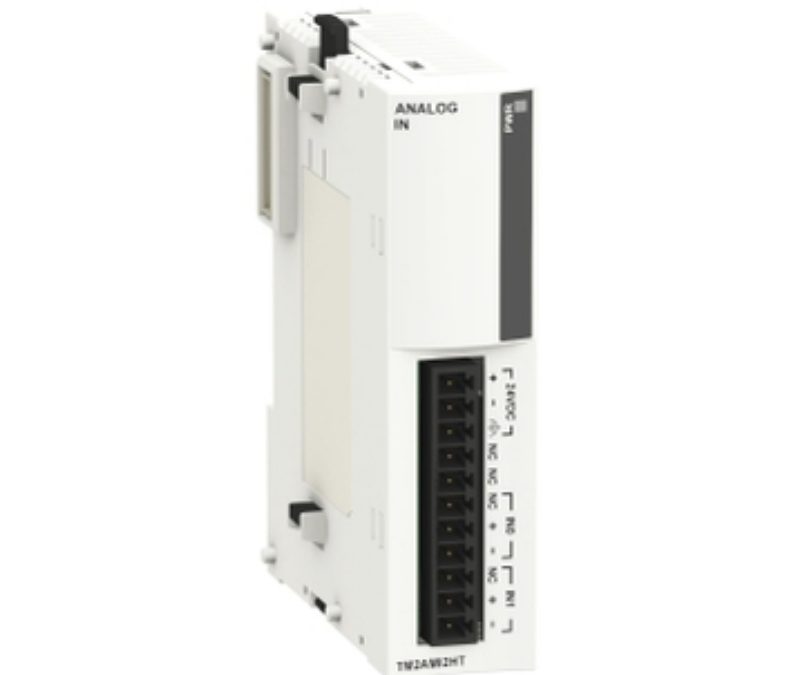

TM2AMI2HT Schneider I/O expansion module

Schneider Schneider

Model: TM2AMI2HT Schneider I/O expansion module

Main Range of Product Modi…

Request a Quote

Genuine products, direct from the factory
Technical selection and commissioning support
Bulk purchasing and customization available

Specifications & Service

MOQ	1 PCS
Warranty	1 year
Delivery Time	3-5 days
Shipping	FedEx/DHL/UPS/TNT
Payment	TT/Western Union

Product Details

Main
Range of Product	Modicon M238 logic controller
Product or Component Type	I/O expansion module
Analogue input number	2
Input level	High level
Analogue input type	current 4…20 mA non differential voltage 0…10 V non differential
Cross talk	<= 2 LSB

Supply	External supply
[Us] rated supply voltage	24 V DC
Supply voltage limits	20.4…28.8 V
Electrical connection	1 removable screw terminal block
Current consumption	50 mA 5 V DC internal 40 mA 24 V DC external
Net Weight	0.187 lb(US) (0.085 kg)

Dielectric strength	500 V between the I/O and the external supply circuit 500 V between the I/O and internal logic
Width	0.9 in (23.5 mm)
Depth	2.8 in (70 mm)
Height	3.5 in (90 mm)
