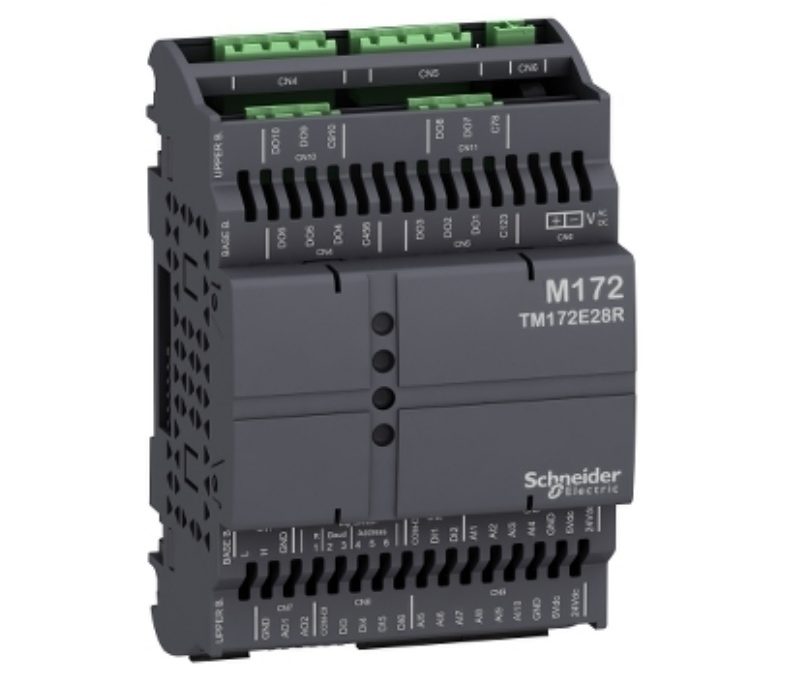

TM172E28R Schneider Expansion module
Model: TM172E28R Schneider Expansion module
Main Range of Product Modi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Modicon M171/M172 |
|---|---|
| Product or Component Type | Additional I/O module |
| Product Specific Application | HVAC control |
| Total inputs/outputs | 28 |
| Discrete input number | 2 4 |
| Discrete output number | 3 relay outputs SPST with same common 2 relay outputs SPST with same common |
| Discrete output current | 3 A relay SPST |
| Analogue input number | 10 configurable by pair |
| Analogue output number | 2 programmable |
| Number of port | 1 CAN port – screw terminal block |
|---|---|
| Input/output number | 2 analog output 6 digital input 10 analog input 10 digital output |
| Discrete input logic | 2 positive logic (sink) up to 2 kHz 4 positive logic (sink) |
| Discrete input voltage | 24 V AC/DC |
| Discrete input current | 2.5 mA AC/DC |
| Input impedance | 20 kOhm |
| Mounting Support | DIN rail Panel mounting with accessory |
|---|---|
| Width | 2.8 in (72 mm) |
| Height | 4.3 in (110 mm) |
| Depth | 2.3 in (59 mm) |
| Net Weight | 0.42 lb(US) (0.19 kg) |
