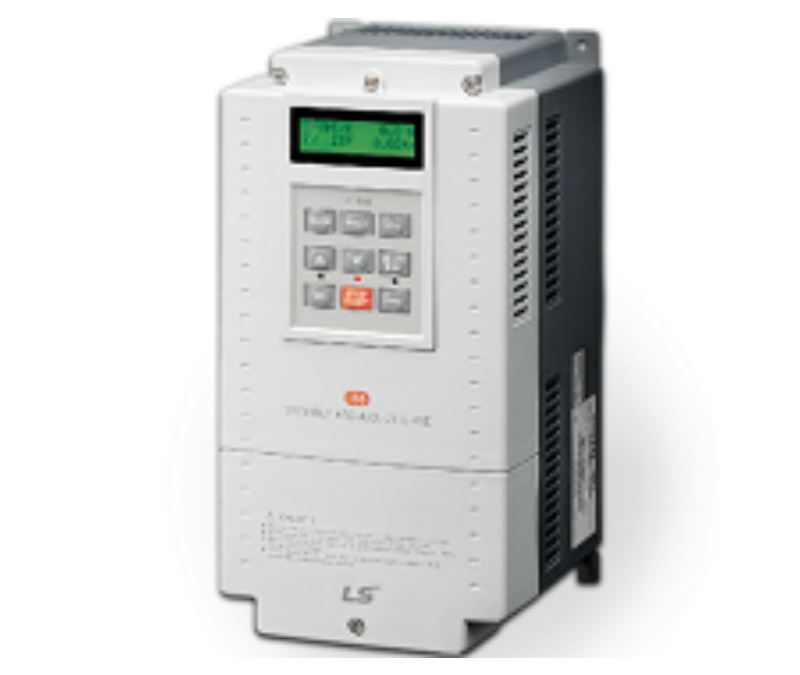

SV055iS5-4N0 LS Inverter
Model: SV055iS5-4N0 LS Inverter
Manufacturer: LS Series: i…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Manufacturer: | LS |
| Series: | iS5 |
| Model: | SV055iS5-4 |
| Application: | general purpose |
| Capacity, kW: | 5,5 |
| Current, ??: | 9.1 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0-400 |
| Enclosure: | IP00 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-6000 |
| Deceleration time, sec: | 0-6000 |
| EMC filter: | – |
| Braking unit: | optional |
| RS485 (Modbus RTU): | Device Net, Profibus DP, Modbus-RTU |
| PID: | + |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, ?㧳: | -10……+40 |
| Storage temperature, ?㧳: | -20……+65 |
| Dimensions (W x H x D), mm: | 200x355x182,5 |
| Weight, kg: | 7,5 |
