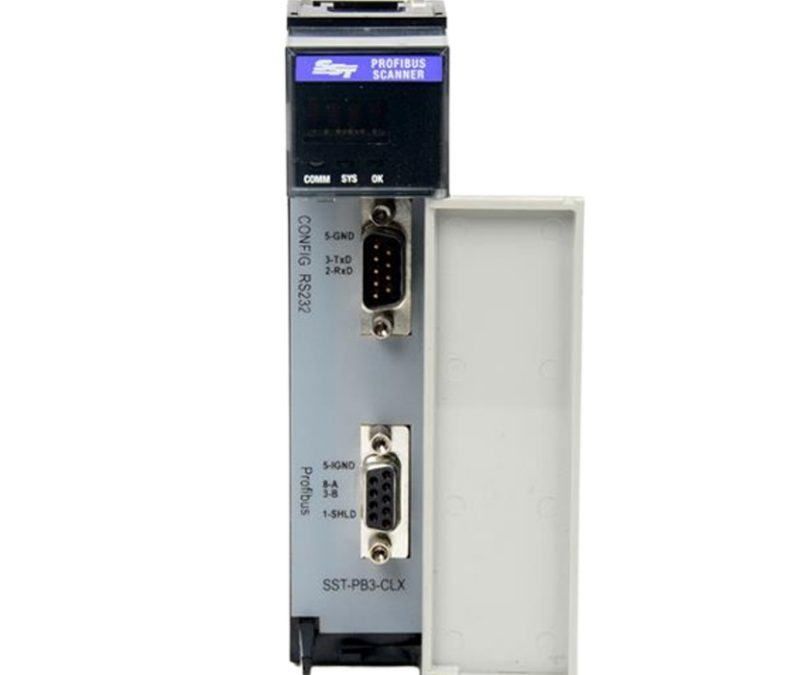

SST-PB3-CLX Molex Profibus scanner module
Model: SST-PB3-CLX Molex Profibus scanner module
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for SST-PB3-CLX-RLL
| Part Number | SST-PB3-CLX-RLL |
|---|---|
| Manufacturer | Molex |
| Compatible Series | 1756 ControlLogix; Honeywell PlantScape |
| Module Type | Profibus communication module |
| Slot Width | Single slot |
| Module location | Any slot |
| Embedded Ports: | One (1) 9-pin sub-D connector |
| Transmission speed: | 9600, 19200, 31.25k, 45.45k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M, 12Mbaud |
| Supported no. of I/O modules | Up to 256 |
| Input data Words | 122 Words |
| No. of DP slaves: | Up to 125 |
| Backplane Current: | 850 mA @ 5 VDC; 1.75 mA@24 VDC |
| Maximum number of modules per rack | 8 modules |
| DPV0 Slave function | Supported |
| Product Type | SST PB3 In Chassis Module |
| Applicable Allen-Bradley Series | ControlLogix |
| Channel | 1 |
| Port | 1 |
| Network Connection Type | PROFIBUS D-Sub Female (9 pin) |
| Slave | PROFIBUS DPV0 |
| Weight | 430 g |
