OTHER

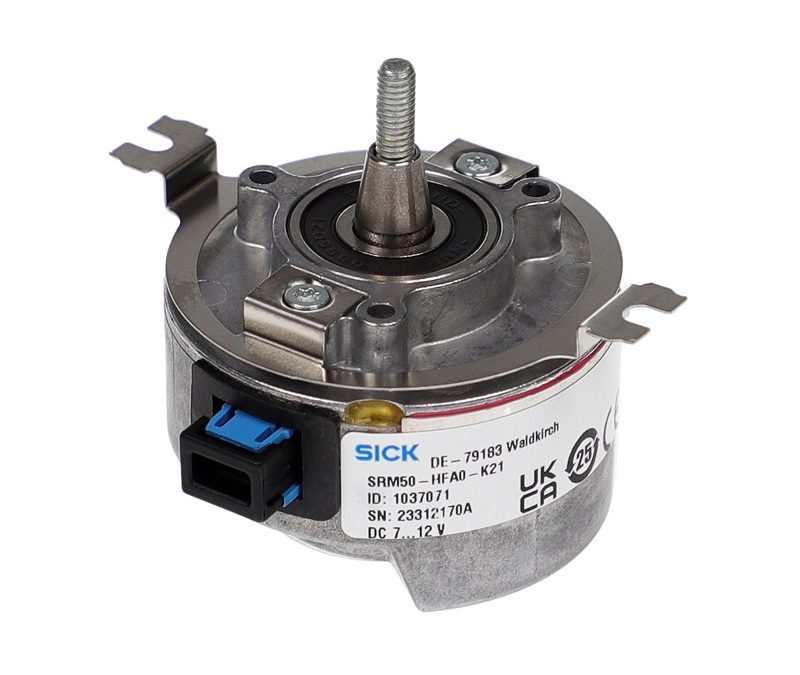

SRM50-HEA0-K21-Sick-Absolute
Model: SRM50-HEA0-K21-Sick-Absolute
Sine/cosine periods per re…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Sine/cosine periods per revolution | 1,024 |
| Number of the absolute ascertainable revolutions | 4,096 |
| Total number of steps | 134,217,728 |
| Measuring step | 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits |
| Integral non-linearity | Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the stator coupling |
| Differential non-linearity | ± 7 ″ |
| Operating speed | ≤ 6,000 min⁻¹, up to which the absolute position can be reliably produced |
| Available memory area | 128 Byte |
| System accuracy | ± 52 ″ |
| Unit weight | 0.218 Kilograms |
| Net unit weight | 0.218 Kilograms |
| Unit volume | 2187 Cubic Centimetres (cm³) |
| Measurements | 13.500*9.000*18.000 |
| Country of origin | Germany |
| EAN | 4047084265907 |
