SKF TKSA 41 Laser Shaft Alignment Tool
Model: SKF TKSA 41 Laser Shaft Alignment Tool
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | TKSA 41 |
| Brand | SKF |
| Product Type | Advanced Laser Shaft Alignment Tool |
| Core Function | Precise alignment of horizontal rotating machines (supports soft foot detection) |
| Sensors & Communication | 29 mm CCD (line laser Class 2), inclinometer (±0.5°); Bluetooth 4.0 LE (wireless) + USB (wired) |
| System Measuring Distance | 0.07 to 4 m (0.23 to 13.1 ft) |
| Measuring Error | <0.5% ±5 µm |
| Supported Shaft Diameters | 20 to 150 mm (0.8 to 5.9 in.); up to 300 mm (11.8 in. with optional extension chains) |
| Max. Coupling Height | 105 mm (4.2 in. with standard rods); 195 mm (7.7 in. with included extension rods) |
| Operating Device | 5.6″ colour resistive touchscreen LCD (High Impact PC/ABS with overmould) |
| Measuring Unit Dimensions | 120 × 90 × 36 mm (4.7 × 3.5 × 1.4 in.) |
| Display Unit Dimensions | 205 × 140 × 60 mm (8.1 × 5.5 × 2.4 in.) |
| Carrying Case Dimensions | 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.) |
| Measuring Unit Weight | 220 g (0.5 lb) |
| Display Unit Weight | 640 g (1.4 lb) |
| Total Weight (incl. Case) | 4.75 kg (10.5 lb) |
| Protection Rating | IP54 (measuring units); IP rating for case not specified (industrial-grade design) |
| Battery Life | Measuring units: Up to 16 hours (rechargeable LiPo); Display unit: Up to 8 hours (100% backlight) |
| Power Adapter | Input: 100-240 V AC 50/60 Hz; Output: 12 V DC 3 A (with EU/US/UK/AUS adapters) |
| Operating Temperature | 0 to 45 °C (32 to 113 °F) |
| Alignment Methods | Horizontal shaft alignment, 3-position (9-12-3) measurement, automatic measurement (min. 90° rotation), soft foot detection |
| Key Features | Machine library, QR code reading, automatic PDF reports (customizable with notes/pictures), live vertical/horizontal correction values, free measurement (90° angular sweep) |

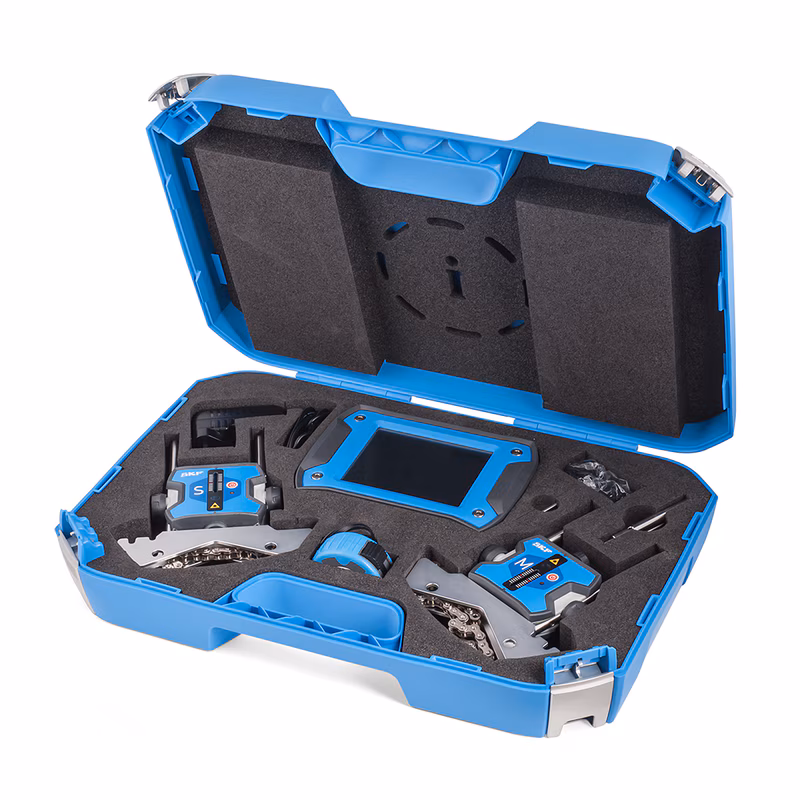

| Included Accessories | 2×measuring units (M&S), 1×display unit, 2×V-brackets (400 mm chains + 150 mm threaded rods), 4×90 mm extension rods, power supply (country adapters), 2×USB cables, measuring tape, calibration certificate (2-year validity), quick start guide (EN), SKF carrying case, 12×QR code stickers |
| Housing Material | Measuring units: 20% glass-filled polycarbonate; Display unit: High Impact PC/ABS with overmould |
| Software Update | Via USB stick |
| Country of Origin | Not specified in provided data |
