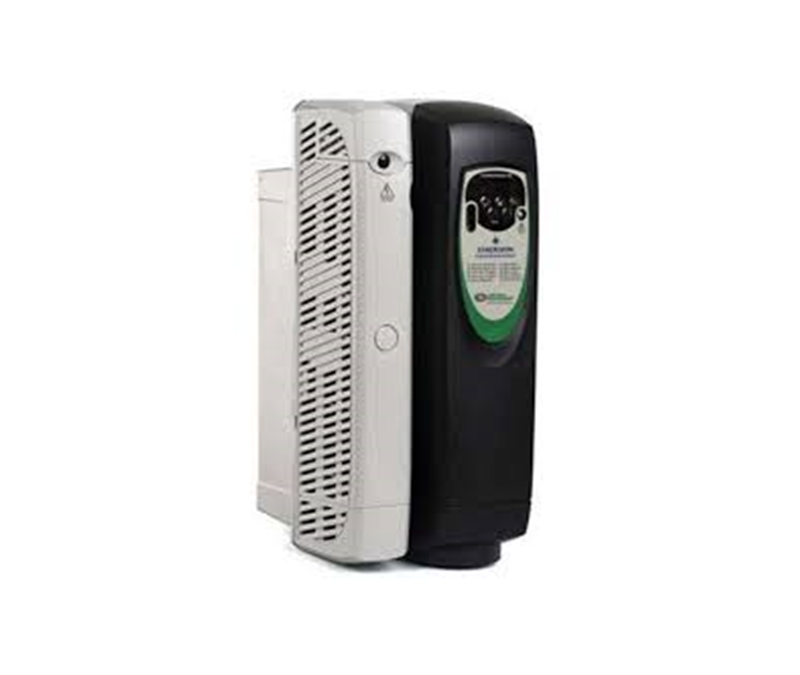

SK 2404 Nidec COMMANDER 15KW INVERTER
Model: SK 2404 Nidec COMMANDER 15KW INVERTER
Control Techniques Command…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Control Techniques Commander SK. SK2404 15kW, IP20. Simple installation and configuration making it easy to use but it has the functions required to solve complex applications. 400V three phase in, 400V three phase out.
Power kW?15
Power HP?20
Input Voltage?415V
Output Voltage?0 to input
Input Phases?3
Output Phases?3
Output Current?29Amps
Input Current?27.6Amps
Encl Rating?IP20
Width?155mm
Height?368mm
Depth?219mm
Frame Size?2
Overload?150%
Duty?Heavy
Dynamic Braking?Yes
Weight?7.000000
Control Type?V/f and Open loop vector
Input Freq?48-62Hz
Output Freq?0-550Hz
Max Temp?40 deg C
Digital Inputs?4
Digital Outputs?1
Analogue I/Ps?2
Analogue O/Ps?1
Output relay(s)?1
Serial Comms?Modbus RTU
Approvals?CE, UL
