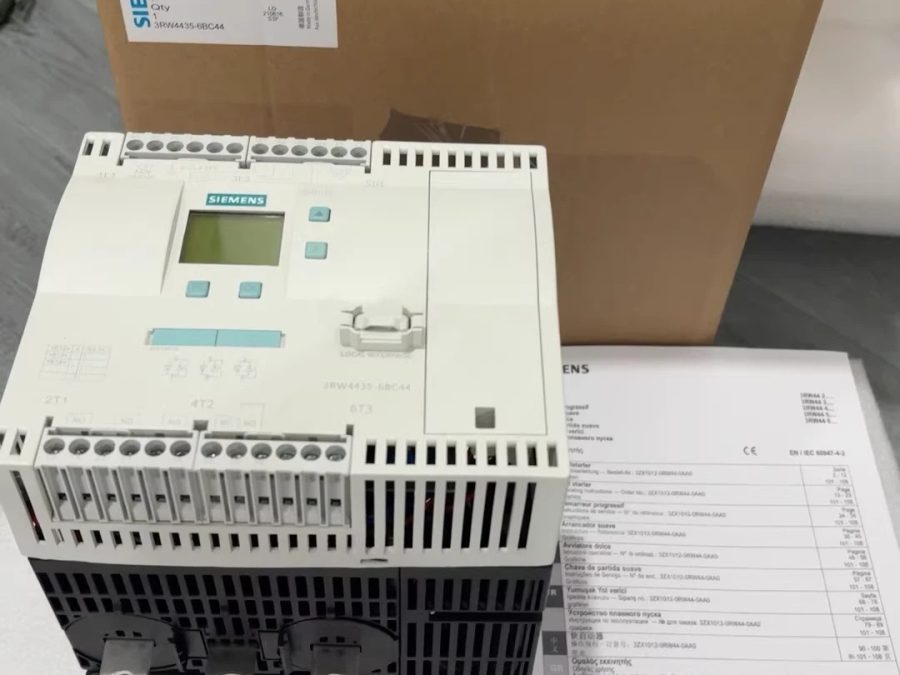

Siemens SIRIUS 3RW4435-6BC44 Soft Starter
Model: Siemens SIRIUS 3RW4435-6BC44 Soft Starter
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 3RW4435-6BC44 |
| Product Series | SIRIUS 3RW44 |
| Type | 3-phase soft starter |
| Rated Operational Current (40°C) | 134 A |
| Inside-Delta Current (40°C) | 232 A |
| Main Voltage Range | 200 … 460 V AC |
| Motor Power (400V Standard) | 75 kW |
| Motor Power (400V Inside-Delta) | 132 kW |
| Frequency | 50/60 Hz |
| Control Voltage | 230 V AC |
| Integrated Bypass | Yes |
| Motor Overload Protection | Yes |
| Thermistor Motor Protection | Yes |
| Auxiliary Contacts | 3 NO + 1 CO |
| Connection Type | Busbar + screw terminals |
| Dimensions (W×H) | 170 × 200 mm |
| Protection Rating | IP00 (IP20 with cover) |
| Operating Temperature | -25 … +60 °C |
| Certifications | CE, CCC, UL, CSA, LRS |
