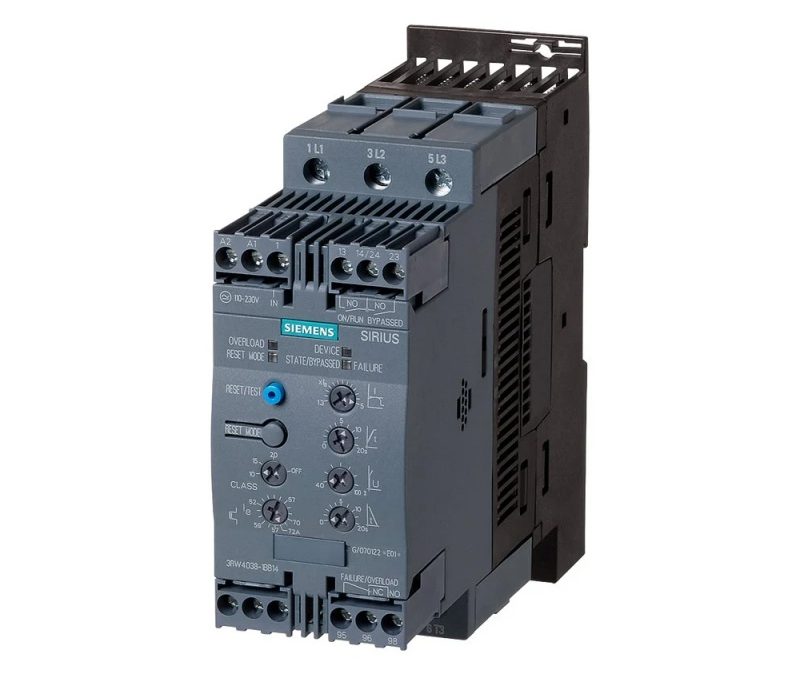

Siemens SIRIUS 3RW4038-1BB14 Soft Starter
Model: Siemens SIRIUS 3RW4038-1BB14 Soft Starter
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 3RW4038-1BB14 |
| Series | SIRIUS |
| Frame Size | S2 |
| Rated Operational Current (40°C) | 72 A |
| Rated Motor Power (400V) | 37 kW |
| Main Voltage Range | 200 … 480 V AC |
| Control Voltage | 110 … 230 V AC/DC |
| Frequency | 50/60 Hz |
| Integrated Bypass | Yes |
| Motor Overload Protection | Yes |
| Adjustable Current Limitation | Yes |
| Auxiliary Contacts | 2 NO + 1 CO |
| Connection Type | Screw terminals |
| Dimensions (W×H×D) | 55 × 160 × 170 mm |
| Protection Degree | IP20 |
| Operating Temperature | -25 … +60 °C |
| Installation Altitude | Up to 5000 m |
| Certifications | CE, CCC, UL, KC, ATEX |
| Power Loss (Typical) | 15 W |
