Siemens

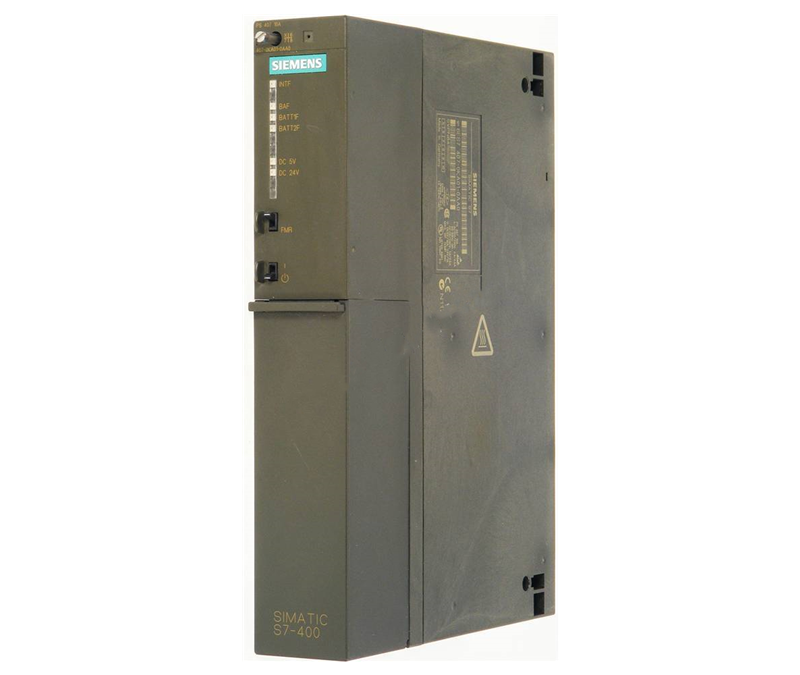

Siemens SIMATIC S7-400 6ES7407-0KA01-0AA0 Power Supply
Model: Siemens SIMATIC S7-400 6ES7407-0KA01-0AA0 Power Supply
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ES7407-0KA01-0AA0 |
| Product Type | SIMATIC S7-400 PS407 Power Supply |
| Input Voltage (AC) | 85 … 264 V AC, 120/230 V AC rated |
| Input Voltage (DC) | 88 … 300 V DC, 110/230 V DC rated |
| Input Frequency | 47 … 63 Hz, 50/60 Hz |
| Input Current (120V AC/DC) | 1.2 A |
| Input Current (230V AC/DC) | 0.6 A |
| Max Inrush Current | 18 A |
| Output Voltage 1 | 5 V DC (backplane bus) |
| Output Current 1 | 10 A |
| Output Voltage 2 | 24 V DC |
| Output Current 2 | 1 A |
| Hold-Up Time | 20 ms |
| Short-Circuit Protection | Yes |
| Isolation | Primary/secondary galvanic isolation |
| Slots Required | 2 slots |
| Dimensions (W×H×D) | 50 × 290 × 217 mm |
| Weight | Approx. 1360 g (1.36 kg) |
| Protection Class | Class I (with protective conductor) |
