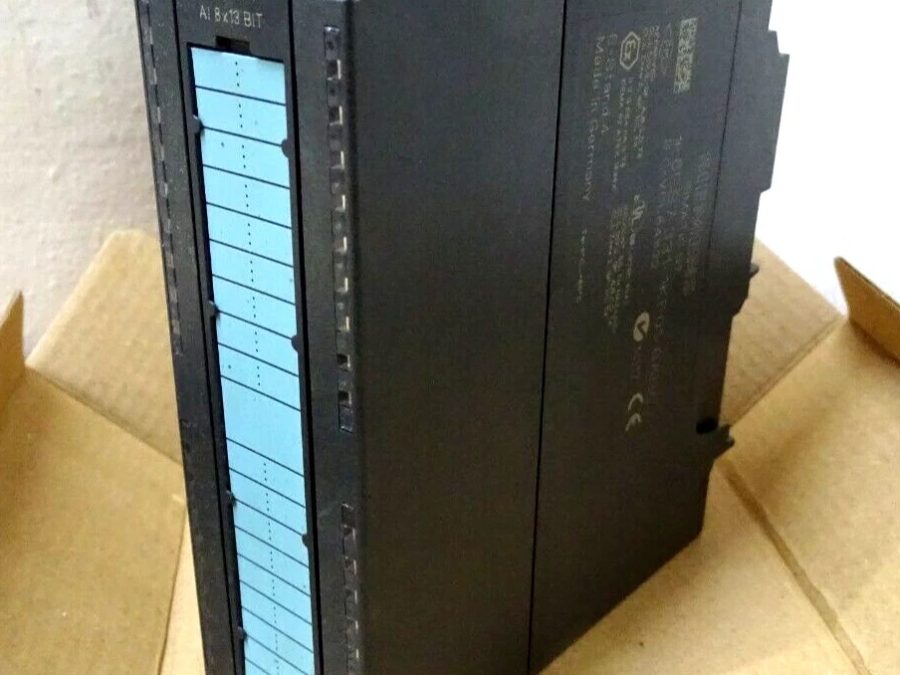

Siemens SIMATIC S7-300 6ES7331-1KF01-0AB0 Analog Input Module
Model: Siemens SIMATIC S7-300 6ES7331-1KF01-0AB0 Analog Input Module
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ES7331-1KF01-0AB0 |
| Product Type | SIMATIC S7-300 Analog Input SM 331 |
| Number of Analog Inputs | 8 |
| Resolution | 13 bit |
| Isolation | Optically isolated (channels to backplane) |
| Input Types | Voltage, Current, Resistance, RTD |
| Supported RTDs | Pt100, Ni100, Ni1000, LG-Ni1000 |
| Voltage Input Ranges | ±50mV, ±500mV, ±1V, ±5V, ±10V, 0~10V, 1~5V |
| Current Input Ranges | 0~20mA, 4~20mA, ±20mA |
| Resistance Ranges | 0~600Ω, 0~6000Ω |
| Module Update Time | 66 ms |
| Input Resistance (Voltage) | 100 kΩ |
| Input Resistance (Current) | 50 Ω |
| Isolation Voltage | 500 V DC |
| Connector | 1 × 40-pin front connector |
| Typical Power Loss | 0.4 W |
| Dimensions (W×H×D) | 40 × 125 × 117 mm |
| Weight | Approx. 250 g |
| Wiring Type | 2/3/4-wire for RTD |
| Accuracy (25°C) | ±0.3% ~ ±0.4% of range |
