Siemens

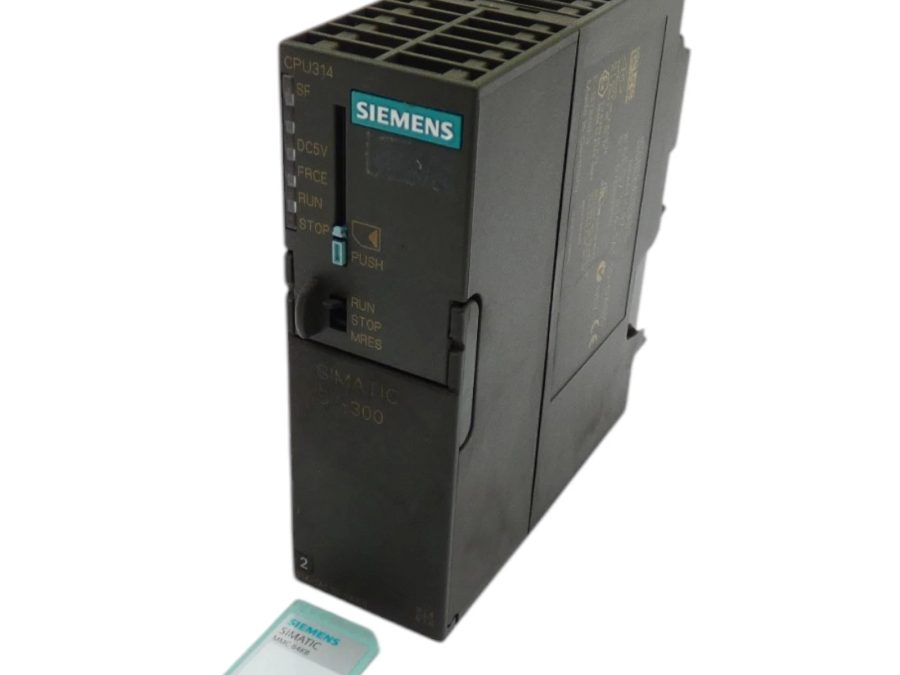

Siemens SIMATIC S7-300 6ES7314-1AF10-0AB0 CPU Module
Model: Siemens SIMATIC S7-300 6ES7314-1AF10-0AB0 CPU Module
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ES7314-1AF10-0AB0 |
| Series | SIMATIC S7-300 |
| Bit Operation Processing Time | Typ. 0.1 μs |
| Work Memory | 8 KB |
| Number of S7 Counters | 256 |
| Number of S7 Timers | 256 |
| Digital I/O (Central) | 1024 inputs, 1024 outputs |
| Analog I/O (Central) | 256 inputs, 256 outputs |
| Interface | Integrated RS485 / MPI |
| MPI Transmission Rate | Max. 187.5 kbit/s |
| Real-Time Clock | Yes, backup 6 weeks |
| Number of Connections | 12 |
| Programming Languages | LAD, FBD, STL, SCL, CFC |
| Diagnostic Buffer | 100 entries |
| Isolation | Non-isolated |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight | Approx. 280 g |
