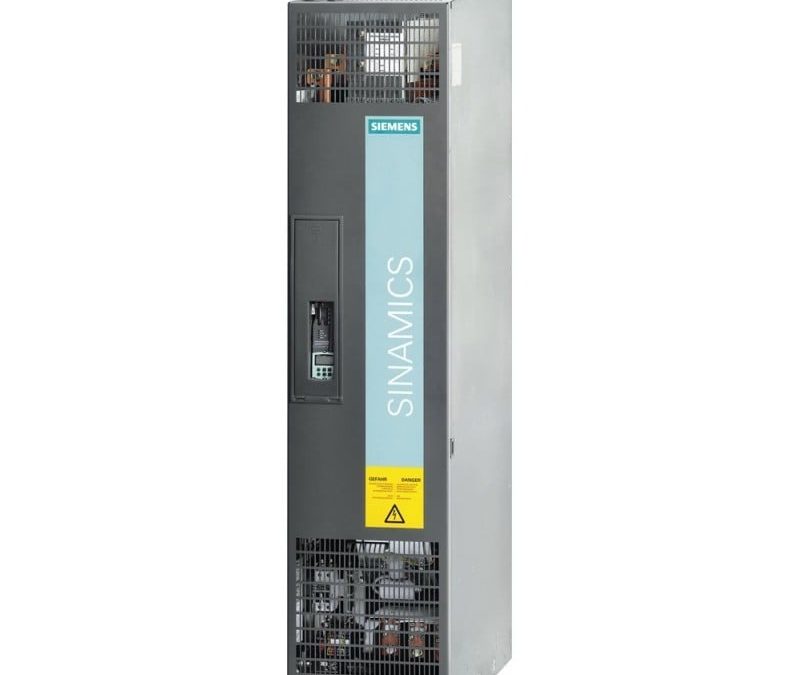

Siemens 6SL3320-1TE32-6AA3 SINAMICS Motor Module Specification Sheet
Model: Siemens 6SL3320-1TE32-6AA3 SINAMICS Motor Module Specification Sheet
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 6SL3320-1TE32-6AA3 |
| Brand | Siemens |
| Product Type | SINAMICS Motor Module |
| DC Link Voltage Range | DC 510 … 720 V |
| Electronics Power Supply | DC 24 V (-15% / +20%) |
| Max. Current Demand (Electronics Supply) | 0.80 A |
| Current Consumption (400 V AC) | 1.13 A |
| DC-Link Rated Current (Iₙ DC) | 312 A (Basic/Smart Line Module); 281 A (Active Line Module) |
| Output Rated Current (Iₙ) | 260 A |
| Output Base-Load Current (Iₗ¹) | 250 A |
| Output Base-Load Current (Iₕ²) | 233 A |
| S6 Duty (40%) Current (Iₛ₆) | 285 A |
| Max. Output Current (Iₘₐₓ) | 375 A |
| Rated Power | 200 kW (based on Iₙ); 110 kW (based on Iₕ) |
| Pulse Frequency | Rated: 2.00 kHz; Max.: 8.00 kHz |
| Output Frequency Range | 0 … 550 Hz (servo/V/f/vector control) |
| DC Link Capacitance | 5,200 µF |
| Dimensions (W×H×D) | 326 mm × 1,400 mm × 356 mm (12.83 in × 55.12 in × 14.02 in) |
| Net Weight | 95 kg (209.44 lb) |
| Protection Rating | IP20 |
| Installation Altitude (No Derating) | 2,000 m (6,561.68 ft) |
| Operating Ambient Temperature | 0 … 40 °C (32 … 104 °F) |
| Cooling Method | External air cooling (integrated fan for intensified cooling); Cooling air requirement: 0.23 m³/s |
| Max. Motor Cable Length | Shielded: 300 m (984.25 ft); Unshielded: 450 m (1,476.38 ft) |
| Safety Certifications | SIL 2 (IEC 61508), PL d (EN ISO 13849-1), Category 3 (EN ISO 13849-1) |
| Compliance Standards | CE, cULus |
| Max. Power Loss | 2.50 kW (50 Hz 400 V); 2.60 kW (60 Hz 460 V) |
| Sound Pressure Level (1m) | 71 dB (50 Hz / 60 Hz) |
| Connection Specifications | Motor end/DC link/PE1/PE2: 2×M10 screws (2×185 mm² conductor); Braking module: M6 threaded bolt |
