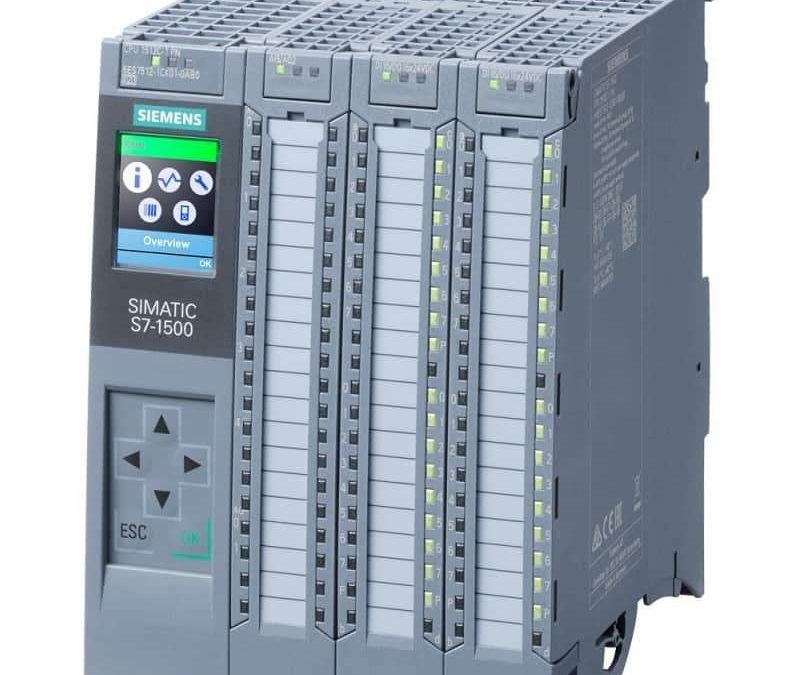

Siemens 6ES7512-1CM03-0AB0 SIMATIC S7-1500 Compact CPU
Model: Siemens 6ES7512-1CM03-0AB0 SIMATIC S7-1500 Compact CPU
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 6ES7512-1CM03-0AB0 |
| Brand | Siemens |
| Product Series | SIMATIC S7-1500 |
| Product Type | Compact CPU (CPU 1512C-1 PN) |
| Work Memory | 400 KB (program); 2 MB (data) |
| Load Memory | Max. 32 GB (via SIMATIC Memory Card, required) |
| Integrated I/O | 32×digital inputs, 32×digital outputs, 5×analog inputs, 2×analog outputs |
| High-Speed Functions | 6×high-speed counters (max. 400 kHz), 4×fast outputs (PTO/PWM/frequency) |
| Interface | 1×PROFINET IRT interface (2-port switch, RJ45), supports IPv4/MODBUS TCP/OPC UA |
| Supply Voltage | DC 24 V (19.2-28.8 V), reverse polarity protected |
| Power Consumption | Rated: 0.66 A; Max: 1 A (without DI/DO load); Typ. power loss: 6 W |
| Processing Performance | Bit operations: 6 ns; Word operations: 7 ns; Floating-point arithmetic: 37 ns |
| Dimensions (W×H×D) | 110 mm × 147 mm × 129 mm |
| Approx. Net Weight | 1235 g (with front connector) |
| Operating Temperature Range | Horizontal: -30…60 °C; Vertical: -30…40 °C (no condensation) |
| Storage/Transport Temperature | -40…70 °C |
| Max. Installation Altitude | 5000 m (restrictions above 2000 m, see manual) |
| Key Features | Isochronous mode, SysLog, web server, media redundancy (MRP), 8 keys + 2 mode buttons, 3.45 cm display |
| Supported Programming Languages | LAD, FBD, STL, SCL, GRAPH |
| Certifications | KC, CCC-Ex, FM, IECEx, NK, CCS, LRS, YUREAS |
| Security Functions | Secure Boot, signed firmware update, data erasure, user administration (100 users/groups) |
| Encoder Supply | 2×24 V outputs (max. 1 A, short-circuit protected) |
| Analog Input Ranges | Voltage (0-10 V/-10-10 V/1-5 V/-5-5 V); Current (0-20 mA/-20-20 mA/4-20 mA); R/RTD (Pt100/Ni100) |
| Analog Output Ranges | Voltage (0-10 V/-10-10 V/1-5 V); Current (0-20 mA/-20-20 mA/4-20 mA) |
