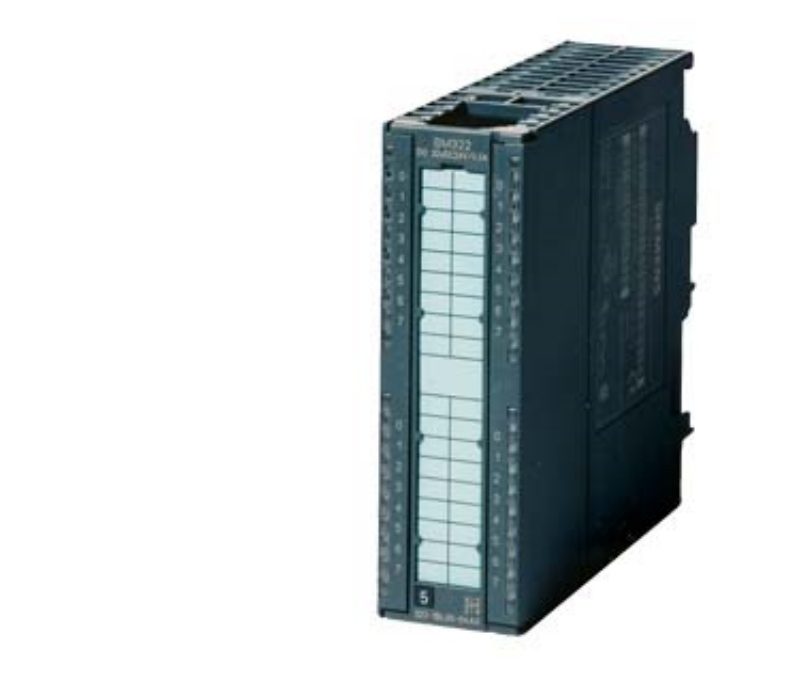

Siemens 6ES7322-1BL00-0AA0 Digital Output Module Specification Sheet
Model: Siemens 6ES7322-1BL00-0AA0 Digital Output Module Specification Sheet
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 6ES7322-1BL00-0AA0 |
| Brand | Siemens |
| Product Type | Digital Output Module |
| Product Series | SIMATIC S7 – 300 |
| Number of Outputs | 16 |
| Output Type | Transistor, sinking output (source – type with external voltage supply) |
| Rated Load Voltage | DC 24 V |
| Output Current per Point | 0.5 A |
| Output Current per Group | 4 A |
| Isolation | Electrical isolation between channels and to backplane; 500 V AC for 1 min |
| Response Time (On) | Typ. 0.5 ms (resistive load) |
| Response Time (Off) | Typ. 1 ms (resistive load) |
| Overvoltage Protection | Zener diode protection for each output channel |
| Short – Circuit Protection | Fuse – less short – circuit protection |
| Operating Temperature Range | 0 – 60 °C |
| Storage Temperature Range | -25 – 70 °C |
| Humidity Range | 5 – 95% non – condensing |
| Dimensions (W×H×D) | 40 mm×125 mm×120 mm |
| Weight | 0.15 kg |
| Mounting | DIN rail mounting (S7 – 300 standard rail) |
| Certifications | CE, cULus, ATEX, FM |
| Standards Compliance | IEC 61131 – 2, EN 60947 – 5 – 1 |
| Country of Origin | Germany |
| Power Consumption | 1.5 W |
| Backplane Current Consumption | 55 mA at 5 V DC |
