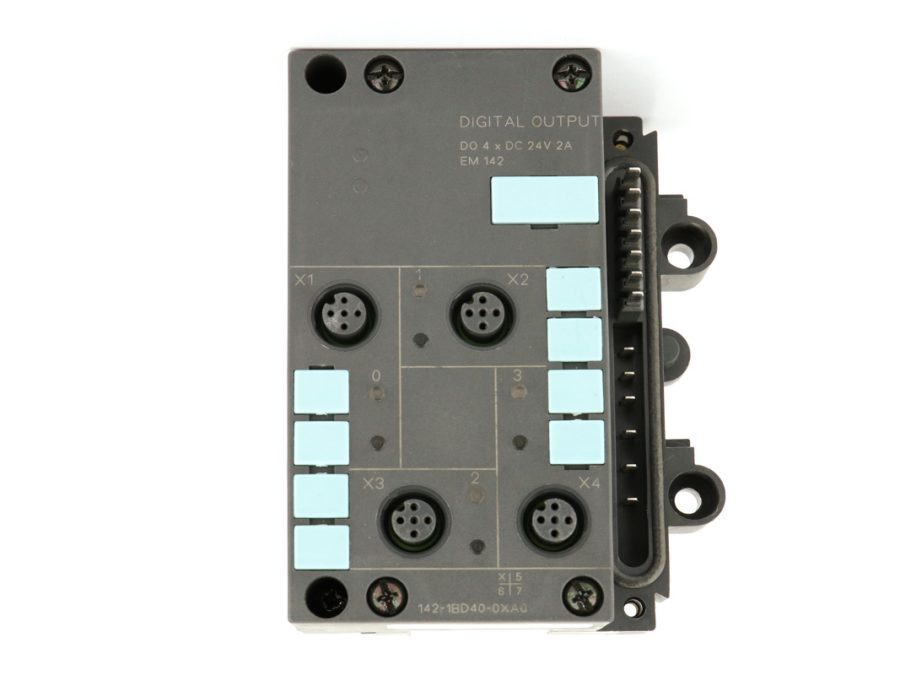

Siemens 6ES7142-1BD40-0XA0 SIMATIC ET 200X Digital Output Expansion Module
Model: Siemens 6ES7142-1BD40-0XA0 SIMATIC ET 200X Digital Output Expansion Module
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ES7142-1BD40-0XA0 |
| Product Type | SIMATIC ET 200X EM142 Digital Output Expansion Module |
| Number of Digital Outputs | 4 channels |
| Rated Output Voltage | 24 V DC |
| Rated Output Current per Channel | 2 A |
| Short-Circuit Protection | Yes, electronic |
| Switching Capacity (Lamp Load) | Max. 10 W per channel |
| Connector Type | 5-pole M12 |
| Protection Degree | IP65 |
| Isolation | Backplane bus to channels galvanically isolated |
| Insulation Test Voltage | 500 V DC |
| Typical Power Consumption | 2.1 W |
| Operating Temperature | -25 °C … +55 °C |
| Storage Temperature | -40 °C … +85 °C |
| Module Dimensions (W×H×D) | 87 × 110 × 55 mm |
| Net Weight | Approx. 290 g (0.29 kg) |
| Compatible Basic Modules | BM 141, BM 142 |
| Product Lifecycle | Discontinued (end of support since 01/10/2019) |
| Certifications | CE, RoHS |
