Siemens

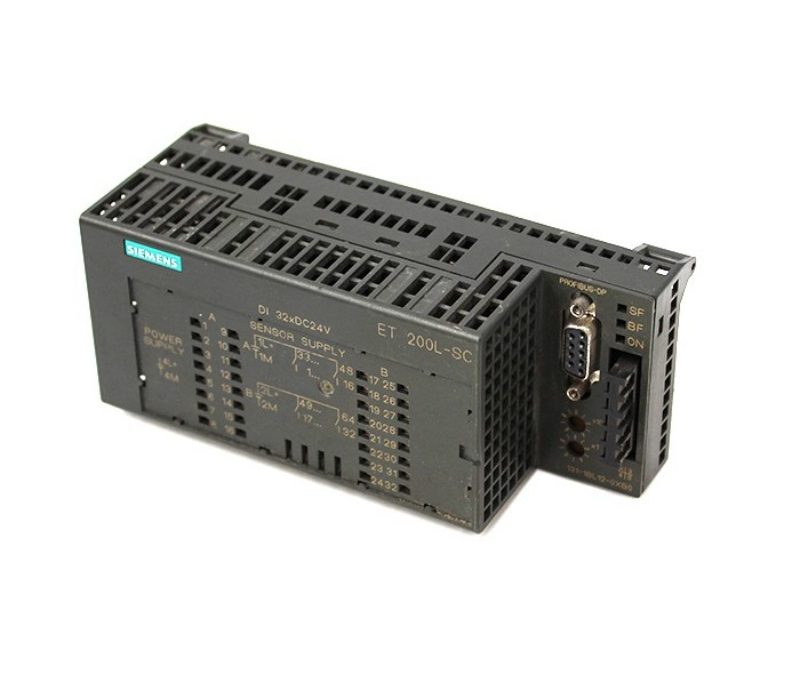

Siemens 6ES7131-1BL12-0XB0 SIMATIC ET200L 32DI Digital Input Module
Model: Siemens 6ES7131-1BL12-0XB0 SIMATIC ET200L 32DI Digital Input Module
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Part Number | 6ES7131-1BL12-0XB0 |
| Product Series | SIMATIC ET200L (PROFIBUS DP) |
| Module Type | Digital Input Electronic Block |
| Total DI Channels | 32 Channels |
| Rated Input Voltage | 24 V DC |
| Logic “0” Range | -30 ~ +5 V DC |
| Logic “1” Range | 13 ~ 30 V DC |
| Typical Input Current (Signal 1) | 5 mA per channel |
| Rated Supply Voltage | 24 V DC |
| Max L+ Supply Current | 180 mA |
| Typical Power Loss | 4.8 W |
| Input Delay | 2~4.5 ms |
| Max Shielded Cable | 1000 m |
| Max Unshielded Cable | 600 m |
| PROFIBUS Max Baudrate | 1.5 Mbit/s |
| Bus Features | SYNC & FREEZE Function Supported |
| Channel Isolation | Channels ↔ PROFIBUS: 500VDC isolation |
| Diagnostic LED | BF(Red), RUN/24V(Green), DI Status(Green) |
| Expand Accessory | Compatible with TB32L / TB16SC Terminal Block |
| Mains Hold-up Time | 20 ms |
| Overall Dimension(W×H×D) | 30 × 150 × 70 mm |
| Net Weight | Approx. 0.196 kg |
