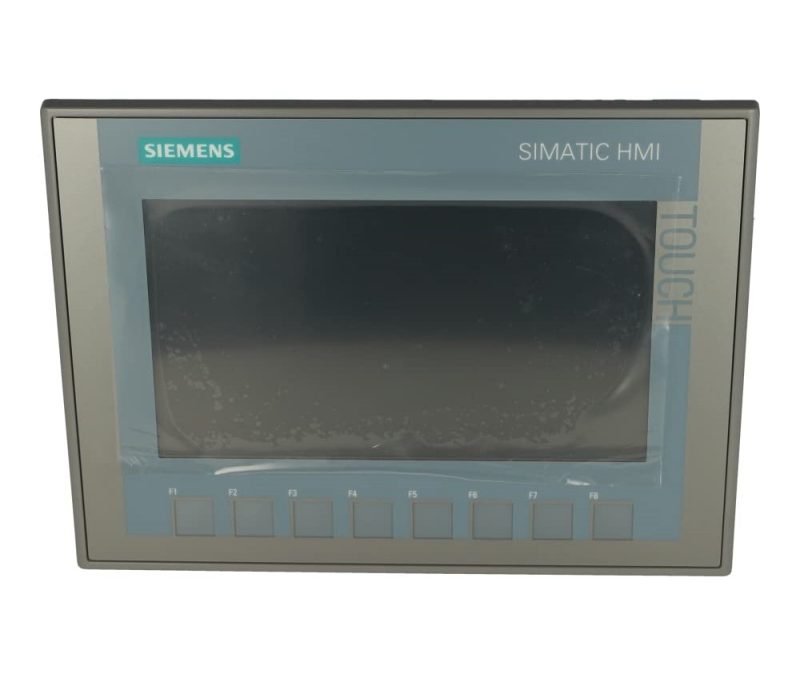

Siemens 6AV2123-2GB03-0AX0 KTP700 Basic 7 Inch PROFINET HMI Touch Panel
Model: Siemens 6AV2123-2GB03-0AX0 KTP700 Basic 7 Inch PROFINET HMI Touch Panel
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Part Number | 6AV2123-2GB03-0AX0 |
| Model | KTP700 Basic PN |
| Screen Size | 7 Inch TFT Wide Screen |
| Display Resolution | 800 × 480 Pixels |
| Display Color | 65536 Colors |
| Backlight | LED, Dimmable, MTBF=20000h@25℃ |
| Operation Mode | Analog Resistive Touch + 8 Physical Function Keys |
| Rated Supply | 24VDC (19.2~28.8VDC tolerance) |
| Rated Input Current | 230mA |
| Typical Power Consumption | 5.5W |
| Main Processor | ARM Architecture |
| User Available Memory | 10MB |
| Real Time Clock | Built-in HW RTC, 6-week backup |
| Communication Ports | 1×PROFINET(RJ45)+1×USB Host |
| Supported Protocols | TCP/IP,DHCP,SNMP,DCP,LLDP,Modbus TCP |
| Front Protection Grade | IP65 / NEMA4X |
| Rear Protection Grade | IP20 |
| Operating Temp(Vertical) | 0℃ ~ +50℃ |
| Storage Temp | -20℃ ~ +60℃ |
| Overall Dimension(W×H×D) | 214 × 158 × 39 mm |
| Net Weight | 780g |
| Mount Cutout Size | 198 × 142 mm |
| Configuration Software | TIA Portal WinCC Basic V13 & above |
| Certifications | CE, cULus, RCM, Marine GL/ABS/DNV/BV/LRS |
