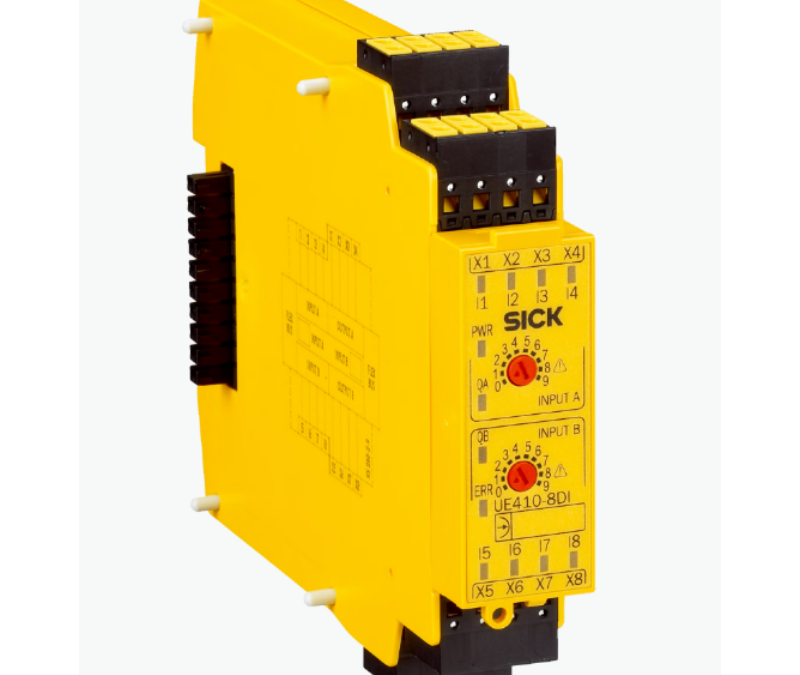

SICKUE410-8DI SICK Safety I/O Module Relay
Model: SICKUE410-8DI SICK Safety I/O Module Relay
Module I/O module Configur…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Module | I/O module |
| Configuration method | Via rotary switch |
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (EN ISO 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 3.8 x 10-9 (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| Inputs | 8 safety inputs |
| Outputs | 8 test outputs |
| Connection type | Plug-in screw-type terminals |
| Display elements | LEDs |
| Protection class | III (EN 61140) |
| Voltage supply | Via FLEXBUS |
| Power consumption | ≤ 3 W (DC) |
| Internal power consumption | ≤ 3 W (DC) |
| Dimensions (W x H x D) | 22.5 mm x 96.5 mm x 120.8 mm |
| Weight | 150 g |
|
|||||||
| Ambient operating temperature | –25 °C … +55 °C | ||||||
| Storage temperature | –25 °C … +70 °C | ||||||
| Air humidity | ≤ 95 %, Non-condensing | ||||||
| Climate conditions according to | EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity) | ||||||
| Electromagnetic compatibility (EMC) | Class A (EN 61000-6-2, EN 55011) | ||||||
| Vibration resistance | 5 g RMS, 5 Hz … 500 Hz (EN 60068-2-64) | ||||||
